EN3C6FCX
ActiveSwitchcraft Inc.

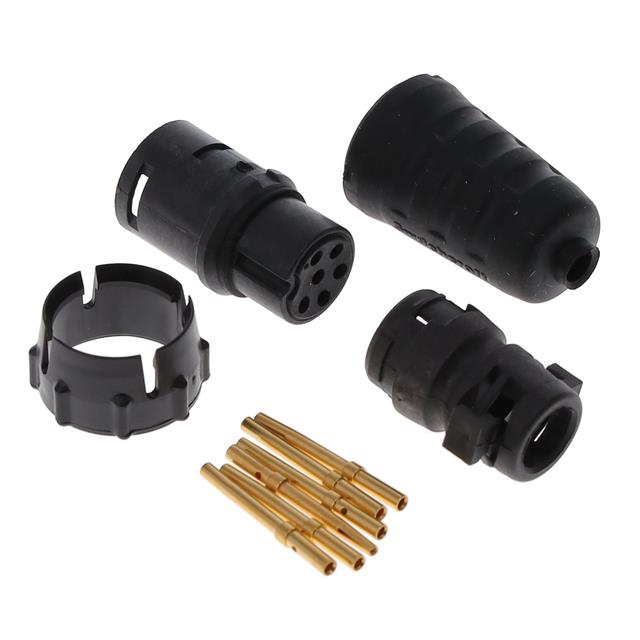

CONN PLUG FMALE 6POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3C6FCX
ActiveSwitchcraft Inc.
CONN PLUG FMALE 6POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3C6FCX | EN3C6F Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening | - | 5.84 mm |
| Cable Opening | - | 0.38 in |
| Cable Opening | - | 9.65 mm |
| Cable Opening | - | 0.23 in |
| Cable Opening [diameter] | 6.73 mm, 4.06 mm | 4.06 - 6.73 mm |
| Cable Opening [diameter] | 0.265 in, 0.16 in | 0.16 - 0.265 in |
| Color | Black | Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Coupling Nut, Backshell | Cable Clamp, Coupling Nut, Backshell |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 250 VAC | 250 VAC |
EN3C6F Series
CONN PLUG FMALE 6POS GOLD CRIMP
| Part | Backshell Material, Plating | Termination | Fastening Type | Contact Finish - Mating | Shielding | Primary Material | Material Flammability Rating | Mounting Type | Features | Ingress Protection | Current Rating (Amps) | Applications | Voltage Rating | Color | Insert Material | Contact Material | Connector Type | Orientation | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3C6FCX | Thermoplastic | Crimp | Bayonet Lock | Gold | Unshielded | Plastic | UL94 V-0 | Free Hanging (In-Line) | Backshell, Cable Clamp, Coupling Nut | IP66/IP68 | 7.5 A | General Purpose, Instrumentation, Marine, Medical | 250 VAC | Black | Elastomer | Copper Alloy | Female Sockets, Plug | Keyed | 6 | 65 °C | -40 °C | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | ||||
Switchcraft Inc. EN3C6FKX | Thermoplastic | Bayonet Lock | Gold | Unshielded | Plastic | UL94 V-0 | Free Hanging (In-Line) | Backshell, Cable Clamp, Coupling Nut | IP66/IP68 | 7.5 A | General Purpose, Instrumentation, Marine, Medical | 250 VAC | Black | Elastomer | Copper Alloy | Female Sockets, Plug | Keyed | 6 | 65 °C | -40 °C | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | |||||
Switchcraft Inc. EN3C6FLX | Thermoplastic | Bayonet Lock | Gold | Unshielded | Plastic | UL94 V-0 | Free Hanging (In-Line) | Backshell, Cable Clamp, Coupling Nut | IP66/IP68 | 7.5 A | General Purpose, Instrumentation, Marine, Medical | 250 VAC | Black | Elastomer | Copper Alloy | Female Sockets, Plug | Keyed | 6 | 65 °C | -40 °C | 5.84 mm | 0.38 in | 9.65 mm | 0.23 in | |||
Switchcraft Inc. EN3C6FX | Thermoplastic | Bayonet Lock | Gold | Unshielded | Plastic | UL94 V-0 | Free Hanging (In-Line) | Backshell, Cable Clamp, Coupling Nut | IP66/IP68 | 7.5 A | General Purpose, Instrumentation, Marine, Medical | 250 VAC | Black | Elastomer | Copper Alloy | Female Sockets, Plug | Keyed | 6 | 65 °C | -40 °C | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.97 | |
| 10 | $ 14.71 | |||
| 25 | $ 13.94 | |||
| 50 | $ 13.74 | |||
| 100 | $ 12.12 | |||
| 300 | $ 11.31 | |||
| 500 | $ 11.07 | |||
Description
General part information
EN3C6F Series
6 Position Circular Connector Plug, Female Sockets Crimp
