MPXQS22K

Obsolete

Cornell Dubilier Knowles

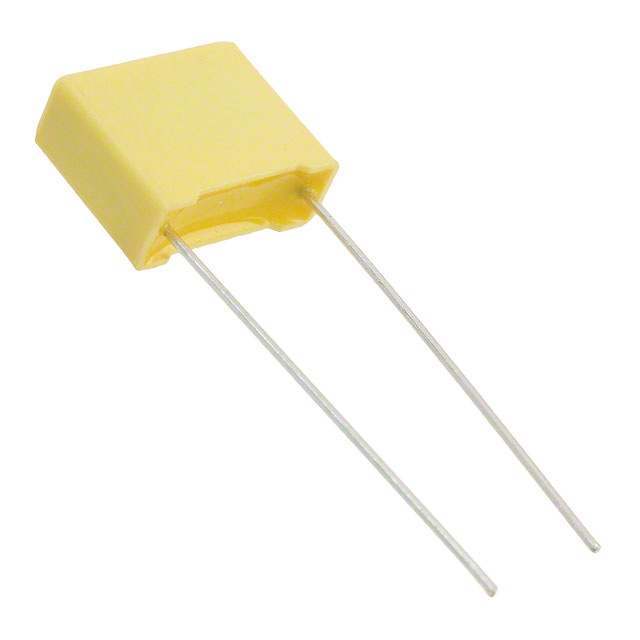

CAP FILM 0.022UF 10% 275VAC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MPXQS22K

Obsolete

Cornell Dubilier Knowles

CAP FILM 0.022UF 10% 275VAC RAD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MPX Series

0.022 µF Film Capacitor 275V Polypropylene (PP), Metallized Radial

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MPXQS22K	MPX Series

Applications	EMI, RFI Suppression	EMI, RFI Suppression
Capacitance	0.022 µF	0.022 - 100000 µF
Dielectric Material	Metallized, Polypropylene (PP)	Metallized, Polypropylene (PP)
Features	Long Life, Low ESR, 85C/85% Humidity, Low ESL, THB	Long Life, Low ESR, 85C/85% Humidity, Low ESL, THB
Height - Seated (Max)	-	0.571 - 1.28 in
Height - Seated (Max)	-	2.382 - 32.5 mm
Height - Seated (Max)	-	14 - 50.5 mm
Height - Seated (Max)	-	60.5 mm
Height - Seated (Max) [Max]	0.453 "	0.453 - 2.106 in
Height - Seated (Max) [Max]	11.5 mm	11.5 - 53.5 mm
Lead Spacing	0.394 in	0.394 - 2.067 in
Lead Spacing	10 mm	10 - 52.5 mm
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	100 °C	100 - 110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial	Radial
Ratings	X2	X2
Size / Dimension	-	13 mm
Size / Dimension [x]	0.512 in	0.512 - 2.264 in
Size / Dimension [x]	13 mm	1.024 - 57.5 mm
Size / Dimension [y]	0.197 "	0.197 - 1.969 in
Size / Dimension [y]	5 mm	0.276 - 50 mm
Termination	PC Pins	PC Pins
Tolerance	10 %	10 %
Voltage Rating - AC	275 V	275 - 305 V

MPX Series

CAP FILM 0.22UF 10% 305VAC RAD

Part	Lead Spacing	Lead Spacing	Features	Termination	Voltage Rating - AC	Capacitance	Mounting Type	Package / Case	Tolerance	Dielectric Material	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Cornell Dubilier Knowles MPX224K305E	15 mm	0.591 in	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	PC Pins	305 V	0.22 µF	Through Hole	Radial	10 %	Metallized, Polypropylene (PP)	EMI, RFI Suppression	0.709 in	18 mm	0.315 in	8 mm	0.571 in	14.5 mm	-40 °C	110 °C	X2
Cornell Dubilier Knowles MPX396K305R	52.5 mm	2.067 in	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	PC Pins	305 V	39 µF	Through Hole	Radial	10 %	Metallized, Polypropylene (PP)	EMI, RFI Suppression	2.264 in	57.5 mm	1.378 "	35 mm			-40 °C	110 °C	X2	50.5 mm	1.988 in
Cornell Dubilier Knowles MPXQS22K	10 mm	0.394 in	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	PC Pins	275 V	0.022 µF	Through Hole	Radial	10 %	Metallized, Polypropylene (PP)	EMI, RFI Suppression	0.512 in	13 mm	0.197 "	5 mm			-40 °C	100 °C	X2		0.453 "	11.5 mm
Cornell Dubilier Knowles MPX474K305G	22.5 mm	0.886 in	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	PC Pins	305 V	0.47 µF	Through Hole	Radial	10 %	Metallized, Polypropylene (PP)	EMI, RFI Suppression	1.024 in	26 mm	0.394 in	10 mm			-40 °C	110 °C	X2		0.768 in	19.5 mm
Cornell Dubilier Knowles MPX475K305N	37.5 mm	1.476 in	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	PC Pins	305 V	4.7 µF	Through Hole	Radial	10 %	Metallized, Polypropylene (PP)	EMI, RFI Suppression	1.673 in	42.5 mm	0.748 in	19 mm	1.28 in	32.5 mm	-40 °C	110 °C	X2
Cornell Dubilier Knowles MPX155K305G	22.5 mm	0.886 in	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	PC Pins	305 V	1.5 µF	Through Hole	Radial	10 %	Metallized, Polypropylene (PP)	EMI, RFI Suppression	1.024 in	26 mm	0.551 in	14 mm			-40 °C	110 °C	X2		0.965 "	24.5 mm
Cornell Dubilier Knowles MPX335K305H	27.5 mm	1.083 in	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	PC Pins	305 V	3.3 µF	Through Hole	Radial	10 %	Metallized, Polypropylene (PP)	EMI, RFI Suppression	1.26 in	32 mm	0.709 "	18 mm			-40 °C	110 °C	X2
Cornell Dubilier Knowles MPXQP33K	22.5 mm	0.886 in	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	PC Pins	275 V	0.33 µF	Through Hole	Radial	10 %	Metallized, Polypropylene (PP)	EMI, RFI Suppression	1.043 in	26.5 mm	0.335 in	8.5 mm			-40 °C	100 °C	X2		0.689 in	17.5 mm
Cornell Dubilier Knowles MPX274K305G	22.5 mm	0.886 in	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	PC Pins	305 V	0.27 µF	Through Hole	Radial	10 %	Metallized, Polypropylene (PP)	EMI, RFI Suppression		1.024 in, 26 mm		0.276 in, 7 mm	0.669 in	17 mm	-40 °C	110 °C	X2
Cornell Dubilier Knowles MPX225K305H	27.5 mm	1.083 in	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	PC Pins	305 V	2.2 µF	Through Hole	Radial	10 %	Metallized, Polypropylene (PP)	EMI, RFI Suppression	1.26 in	32 mm	0.551 in	14 mm			-40 °C	110 °C	X2
