5259
ActiveAdafruit Industries LLC

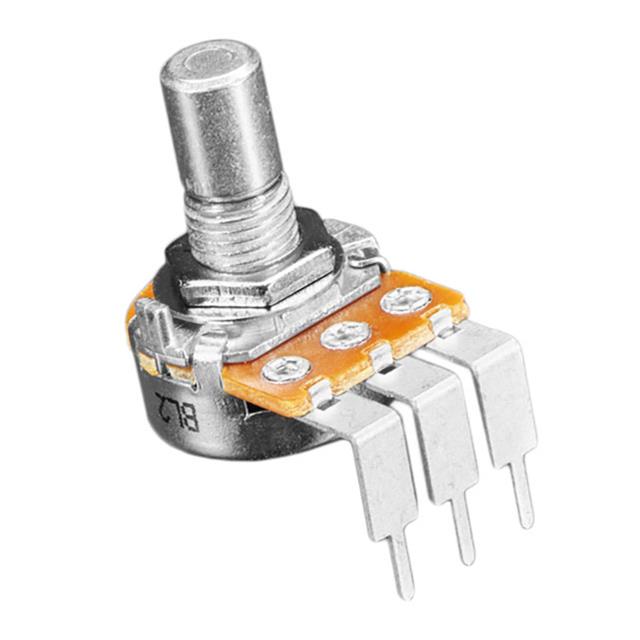

POT 500K OHM 0.06W R-LOG
5259
ActiveAdafruit Industries LLC
POT 500K OHM 0.06W R-LOG
Description
General part information
5259
500k Ohm 1 Gang Reverse Logarithmic Through Hole Potentiometer None 1.0 Kierros 0.06W PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | 5259 |
|---|---|
| Actuator Diameter | 0.236 in |
| Actuator Length | 0.591 in |
| Actuator Type | Knurled and Slotted |
| Adjustment Type | Top Adjustment |
| Built in Switch | None |
| Bushing Thread | M7 x 0.75 |
| Bushing Thread Diameter | 7 mm |
| Bushing Thread Pitch | 0.75 mm |
| Mounting Type | Through Hole |
| Number of Gangs | 1 |
| Number of Turns | 1 turns |
| Power (Watts) | 0.06 W |
| Resistance | 500 kOhm |
| Rotation | 300 ° |
| Size - Body Diameter | 0.669 in |
| Size - Body Shape | Round |
| Taper | Reverse Logarithmic |
| Termination Style | PC Pins |
