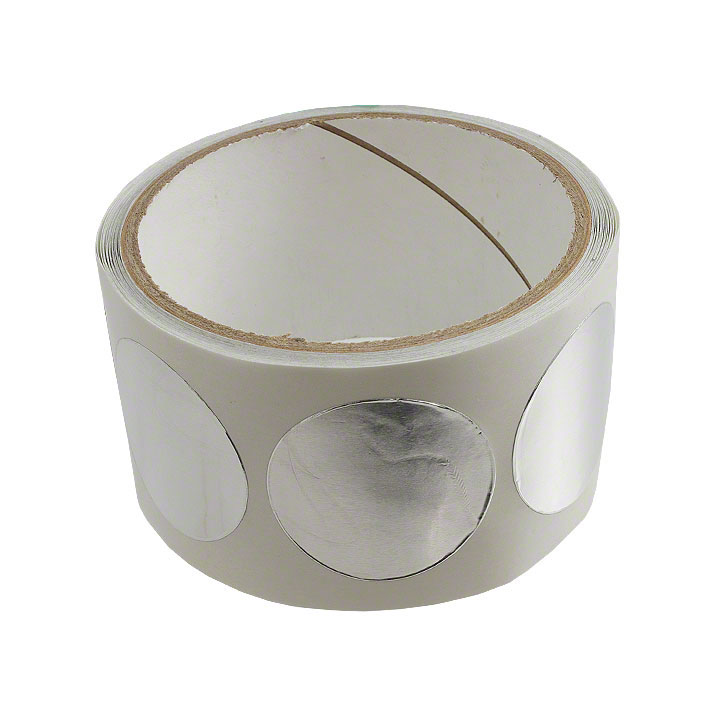

3M 1170 CIRCLE-1.5"-100
Active3M (TC)
RF EMI SHLDING SHEET 1.5" 100PK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3M 1170 CIRCLE-1.5"-100
Active3M (TC)
RF EMI SHLDING SHEET 1.5" 100PK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3M 1170 CIRCLE-1.5"-100 |
|---|---|
| Adhesive | Conductive, Single Sided |
| Material | Aluminum Foil |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -40 °C |
| Shape | Circular |
| Shelf Life | 60 Months |
| Shelf Life Start | Date of Manufacture |
| Storage/Refrigeration Temperature [Max] | 80 °F, 27 °C |
| Storage/Refrigeration Temperature [Min] | 10 °C |
| Thickness - Overall | 0.003 " |
| Thickness - Overall | 0.08 mm |
| Type | Shielding Sheet |
| Width | 38.1 mm |
| Width [x] | 1.5 in |
1170 Series
| Part | Shelf Life | Type | Material | Width [x] | Width [x] | Thickness - Overall | Thickness - Overall | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] | Adhesive | Shelf Life Start | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Min] | Shape | Length | Length | Width [y] | Width [y] | Width | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 60 Months | Shielding Tape | Aluminum Foil | 63.5 mm | 2.5 in | 0.003 " | 0.08 mm | -40 °C | 130 °C | 180 ft | 55 m | Conductive Single Sided | Date of Manufacture | 27 °C 80 °F | 10 °C | Roll | ||||||
3M (TC) | 60 Months | Shielding Sheet | Aluminum Foil | 50.8 mm | 2 in | 0.003 " | 0.08 mm | -40 °C | 130 °C | Conductive Single Sided | Date of Manufacture | 27 °C 80 °F | 10 °C | Circular | ||||||||
3M (TC) | 60 Months | Shielding Tape | Aluminum Foil | 0.003 " | 0.08 mm | -40 °C | 130 °C | Conductive Single Sided | Date of Manufacture | 27 °C 80 °F | 10 °C | Roll | 16.5 m | 54 ft | 152.4 mm | 6 in | ||||||
3M (TC) | 60 Months | Shielding Sheet | Aluminum Foil | 0.003 " | 0.08 mm | -40 °C | 130 °C | Conductive Single Sided | Date of Manufacture | 27 °C 80 °F | 10 °C | Square | 254 mm | 10 in | 7.7 in | 195 mm | ||||||
3M (TC) | 60 Months | Shielding Sheet | Aluminum Foil | 1.5 in | 0.003 " | 0.08 mm | -40 °C | 130 °C | Conductive Single Sided | Date of Manufacture | 27 °C 80 °F | 10 °C | Circular | 38.1 mm | ||||||||
3M (TC) | 60 Months | Shielding Sheet | Aluminum Foil | 1.5 in | 0.003 " | 0.08 mm | -40 °C | 130 °C | Conductive Single Sided | Date of Manufacture | 27 °C 80 °F | 10 °C | Square | 38.1 mm | 1.5 " | 38.1 mm | ||||||
3M (TC) | 60 Months | Shielding Tape | Aluminum Foil | 0.003 " | 0.08 mm | -40 °C | 130 °C | Conductive Single Sided | Date of Manufacture | 27 °C 80 °F | 10 °C | Roll | 16.5 m | 54 ft | 16 mm | 0.63 " | ||||||
3M (TC) | 60 Months | Shielding Tape | Aluminum Foil | 0.003 " | 0.08 mm | -40 °C | 130 °C | Conductive Single Sided | Date of Manufacture | 27 °C 80 °F | 10 °C | Roll | 16.5 m | 54 ft | 9.65 mm | 0.38 in | ||||||
3M (TC) | 60 Months | Shielding Sheet | Aluminum Foil | 584 mm | 22.992 in | 0.003 " | 0.08 mm | -40 °C | 130 °C | Conductive Single Sided | Date of Manufacture | 27 °C 80 °F | 10 °C | Roll | 16.5 m | 54 ft | ||||||
3M (TC) | 60 Months | Shielding Tape | Aluminum Foil | 101.6 mm | 4 " | 0.003 " | 0.08 mm | -40 °C | 130 °C | Conductive Single Sided | Date of Manufacture | 27 °C 80 °F | 10 °C | Roll | 16.5 m | 54 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2 | $ 90.91 | |
| 100 | $ 78.01 | |||
Description
General part information
1170 Series
RF EMI Shielding Sheet 1170 Aluminum Foil Conductive, Single Sided 1.500" (38.10mm) X X 0.003" (0.08mm)
