Description
General part information

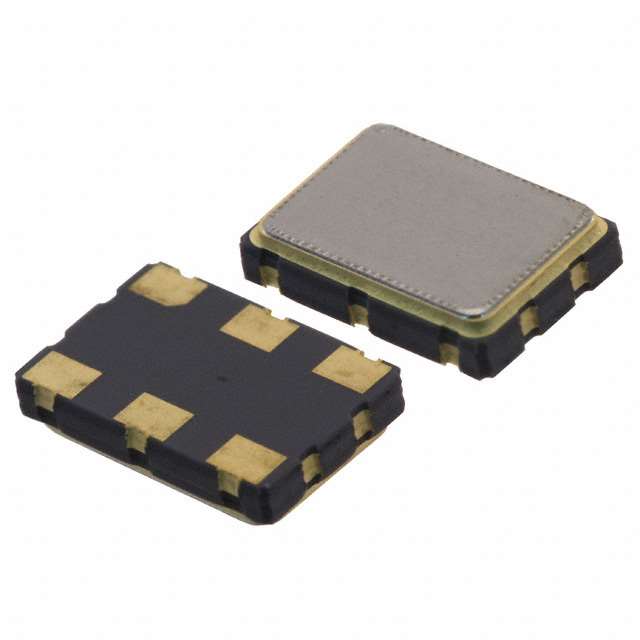

ECS-PEC25-1000-B-N
100 MHz XO (Standard) PECL Oscillator 2.5V Enable/Disable 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ECS-PEC25-1000-B-N |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 30 µA |
| Current - Supply (Max) | 90 mA |
| Frequency | 100 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.067 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | PECL |
| Package / Case | No Lead, 6-SMD |
| Package Length | 7 mm |
| Package Name | 6-SMD |
| Package Width | 5 mm |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | XO (Standard) |
| Voltage - Supply | 2.5 V |
