1059654-1

Active

TE Connectivity AMP Connectors

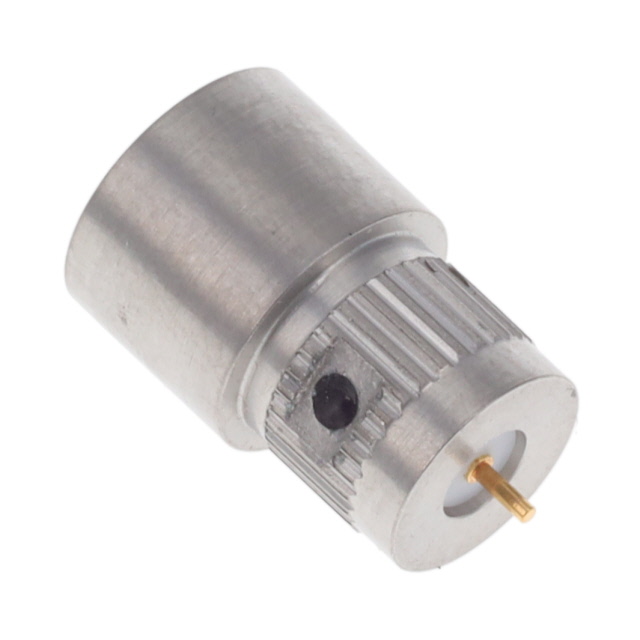

CONN MINI OSP RCPT STR 50 OHM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN MINI OSP RCPT STR 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	1059654-1

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Mini, OSP
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	5000
Mounting Feature	Press Fit (Knurled)
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN MINI OSP RCPT STR 50 OHM

Part	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Connector Type	Mounting Feature	Connector Style	Voltage Rating	Dielectric Material	Contact Termination	Body Material	Housing Color	Number of Ports	Fastening Type	Frequency - Max [Max]	Center Contact Plating	Mating Cycles	Impedance
TE Connectivity AMP Connectors 1059654-1	Beryllium Copper	125 °C	-65 ░C	Solder	Female Socket, Receptacle	Press Fit (Knurled)	Mini, OSP	335 V	Polytetrafluoroethylene (PTFE)	Solder	Stainless Steel	Silver	1	Snap-On	18 GHz	Gold	5000	50 Ohms

General part information

OSP, Mini Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
