S500DZ-14-18PN

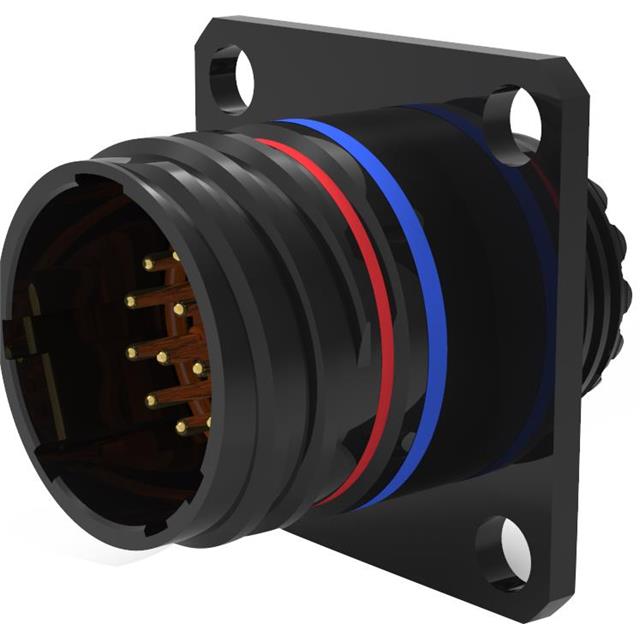

18 Position Circular Connector Receptacle, Male Pins Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | S500DZ-14-18PN |
|---|---|
| Applications | Military, Aerospace |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Current Rating | 7.5 A |
| Fastening Type | Threaded |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Positions | 18 |
| Orientation | N (Normal) |
| Shell Finish | Black Zinc Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert (Maximum) | 18 |
| Shell Size - Insert (Minimum) | 14 S |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating (AC) | 1000 VAC |
| Voltage Rating (DC) | 1300 VDC |
