1N3511A/TR
ActiveMicrochip Technology

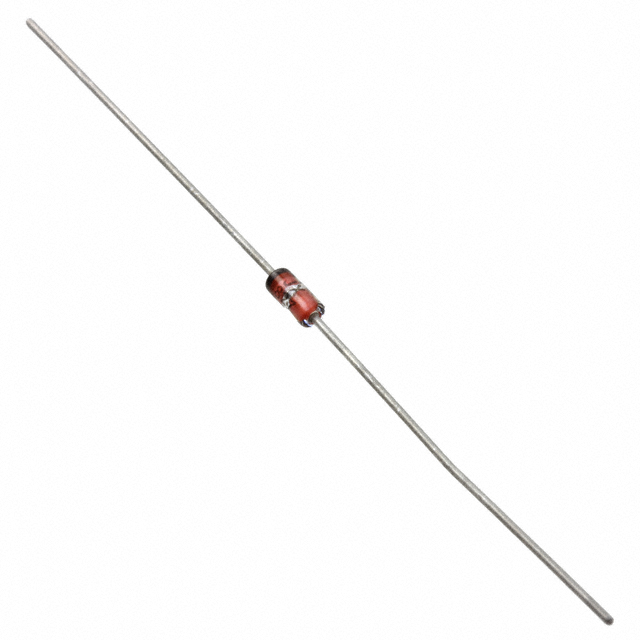

VOLTAGE REGULATOR DO-35 ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
1N3511A/TR
ActiveMicrochip Technology
VOLTAGE REGULATOR DO-35 ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1N3511A/TR | 1N3511 Series |
|---|---|---|
| - | - | |
| Impedance (Max) (Zzt) [Max] | 14 Ohms | 14 Ohms |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 175 ░C | 175 - 347 ░C |
| Operating Temperature [Min] | -65 °C | -65 °C |
| Package / Case | Axial, DO-35, DO-204AH | Axial, DO-35, DO-204AH |
| Power - Max [Max] | 400 mW | 400 - 500 mW |
| Supplier Device Package | DO-204AH (DO-35) | DO-204AH (DO-35) |
| Tolerance | 5 % | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V | 1.1 V |
| Voltage - Zener (Nom) (Vz) | 5.1 V | 5.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
1N3511 Series
ZENER DIODE SINGLE 2-PIN 5.1V, ±5%, 14OMHS, 400MW DO-35
| Part | Impedance (Max) (Zzt) [Max] | Mounting Type | Package / Case | Power - Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Forward (Vf) (Max) @ If | Tolerance | Supplier Device Package | Voltage - Zener (Nom) (Vz) |
|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology 1N3511A | ||||||||||
Microchip Technology 1N3511D-1 | ||||||||||
Microchip Technology 1N3511D | ||||||||||
Microchip Technology 1N3511D/TR | ||||||||||
Microchip Technology 1N3511A/TR | ||||||||||
Microchip Technology 1N3511A/TR | 14 Ohms | Through Hole | Axial, DO-204AH, DO-35 | 400 mW | 175 ░C | -65 °C | 1.1 V | 5 % | DO-204AH (DO-35) | 5.1 V |
Microchip Technology 1N3511D | ||||||||||
Microchip Technology 1N3511D-1 | ||||||||||
Microchip Technology 1N3511A | 14 Ohms | Through Hole | Axial, DO-204AH, DO-35 | 500 mW | 347 °F | -65 ░C | 1.1 V | 5 % | DO-204AH (DO-35) | 5.1 V |
Microchip Technology 1N3511D/TR | ||||||||||
Microchip Technology 1N3511D-1/TR | ||||||||||
Microchip Technology 1N3511D-1/TR |
Description
General part information
1N3511 Series
Zener Diode 5.1 V 400 mW ±5% Through Hole DO-204AH (DO-35)
