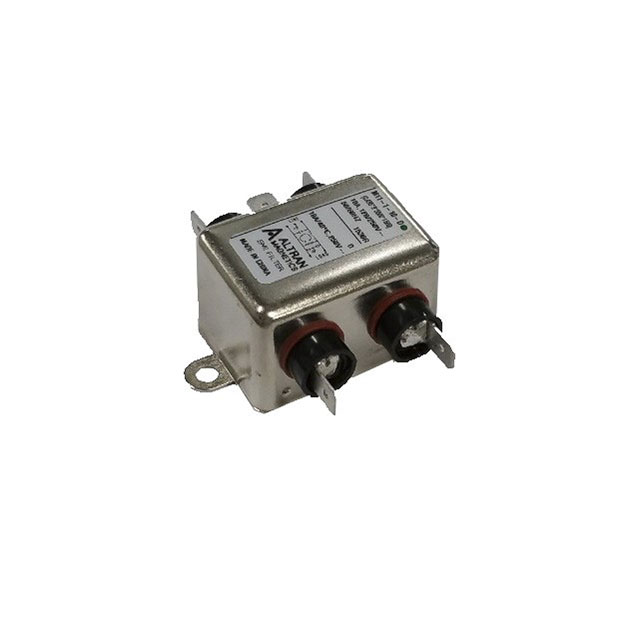

AMI-M11A-6-20-D

Active

Altran Magnetics, LLC

LINE FILTER 250VAC 20A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMI-M11A-6-20-D

Active

Altran Magnetics, LLC

LINE FILTER 250VAC 20A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AMI-M11A-6-20-D	AMI-M11A Series

Applications	General Purpose	General Purpose
Configuration	Single Stage	Single Stage
Current	20 A	1 - 30 A
Filter Type	Single Phase	Single Phase
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Inductance	440 µH	1.76 - 690 mH
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-10 °C	-10 °C
Termination Style	Quick Connect	Quick Connect, Wire Leads, Threaded Post (8-32)
Voltage - Rated AC	250 V	250 V

AMI-M11A Series

LINE FILTER 250VAC 1A CHASSIS

Part	Termination Style	Configuration	Mounting Type	Filter Type	Voltage - Rated AC	Frequency - Operating [Max]	Frequency - Operating [Min]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	Current
Altran Magnetics, LLC AMI-M11A-1-1-D	Quick Connect	Single Stage	Chassis Mount	Single Phase	250 V	60 Hz	50 Hz	General Purpose	-10 °C	40 °C	1.86 mH	1 A
Altran Magnetics, LLC AMI-M11A-3-10-D	Wire Leads	Single Stage	Chassis Mount	Single Phase	250 V	60 Hz	50 Hz	General Purpose	-10 °C	40 °C	495 µH	10 A
Altran Magnetics, LLC AMI-M11A-3-3-D	Wire Leads	Single Stage	Chassis Mount	Single Phase	250 V	60 Hz	50 Hz	General Purpose	-10 °C	40 °C	1.76 mH	3 A
Altran Magnetics, LLC AMI-M11A-3-2-B	Wire Leads	Single Stage	Chassis Mount	Single Phase	250 V	60 Hz	50 Hz	General Purpose	-10 °C	40 °C	539 µH	2 A
Altran Magnetics, LLC AMI-M11A-3-5-D	Wire Leads	Single Stage	Chassis Mount	Single Phase	250 V	60 Hz	50 Hz	General Purpose	-10 °C	40 °C	516 µH	5 A
Altran Magnetics, LLC AMI-M11A-1-3-B	Quick Connect	Single Stage	Chassis Mount	Single Phase	250 V	60 Hz	50 Hz	General Purpose	-10 °C	40 °C	1.76 mH	3 A
Altran Magnetics, LLC AMI-M11A-1-2-D	Quick Connect	Single Stage	Chassis Mount	Single Phase	250 V	60 Hz	50 Hz	General Purpose	-10 °C	40 °C	539 µH	2 A
Altran Magnetics, LLC AMI-M11A-6-10-D	Quick Connect	Single Stage	Chassis Mount	Single Phase	250 V	60 Hz	50 Hz	General Purpose	-10 °C	40 °C	495 µH	10 A
Altran Magnetics, LLC AMI-M11A-3-1-B	Wire Leads	Single Stage	Chassis Mount	Single Phase	250 V	60 Hz	50 Hz	General Purpose	-10 °C	40 °C	1.86 mH	1 A
Altran Magnetics, LLC AMI-M11A-1-10-B	Quick Connect	Single Stage	Chassis Mount	Single Phase	250 V	60 Hz	50 Hz	General Purpose	-10 °C	40 °C	495 µH	10 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	48	$ 7.60

Description

General part information

AMI-M11A Series

Single Phase EMC/EMI Line Filter 20 A 250V 50/60Hz Single Stage Quick Connect
