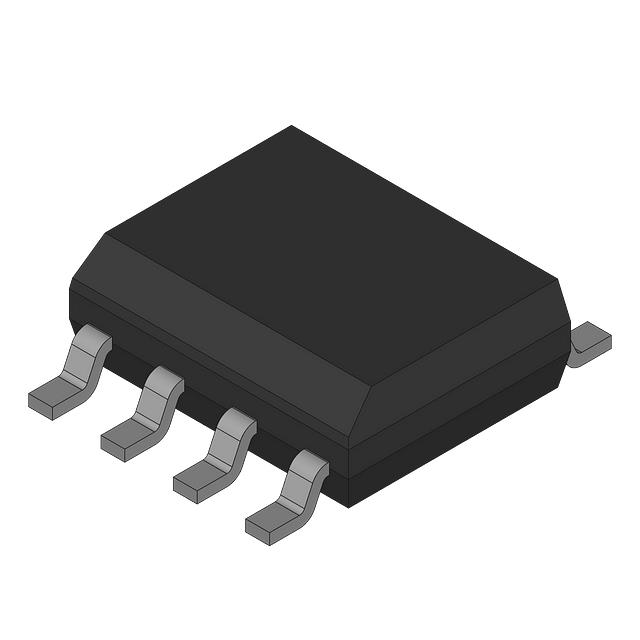

CY22381SXI-183

Obsolete

Infineon Technologies

IC CLOCK GENERATOR 8SOIC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CY22381SXI-183

Obsolete

Infineon Technologies

IC CLOCK GENERATOR 8SOIC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CY22381SXI-183

Frequency - Max [Max]	166 MHz
Input	Crystal or Other
Mounting Type	Surface Mount
Output	CMOS
Package / Case	8-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Supplier Device Package	8-SOIC
Type	Clock Generator
Voltage - Supply [Max]	3.465 V
Voltage - Supply [Min]	3.135 V

CY22381 Series

Part	Mounting Type	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [x]	Ratio - Input:Output [custom]	Output	Operating Temperature [Max]	Operating Temperature [Min]	Type	Frequency - Max [Max]	Input	Divider/Multiplier	PLL	Number of Circuits	Voltage - Supply [Max]	Voltage - Supply [Min]
Infineon Technologies CY22381SXC-158	Surface Mount	8-SOIC	8-SOIC	3.9 mm	0.154 in
Infineon Technologies CY22381FXI	Surface Mount	8-SOIC	8-SOIC	3.9 mm	0.154 in	1:3	CMOS	85 °C	-40 °C	Clock Generator Fanout Distribution	166 MHz	Crystal LVTTL	Yes/No	Yes with Bypass	1	3.465 V	3.135 V
Infineon Technologies CY22381SXI-183	Surface Mount	8-SOIC	8-SOIC	3.9 mm	0.154 in		CMOS			Clock Generator	166 MHz	Crystal or Other				3.465 V	3.135 V
Infineon Technologies CY22381FXI	Surface Mount	8-SOIC	8-SOIC	3.9 mm	0.154 in	1:3	CMOS	85 °C	-40 °C	Clock Generator Fanout Distribution	166 MHz	Crystal LVTTL	Yes/No	Yes with Bypass	1	3.465 V	3.135 V
Infineon Technologies CY22381SXI-194	Surface Mount	8-SOIC	8-SOIC	3.9 mm	0.154 in	1:3	CMOS	85 °C	-40 °C	Clock Generator Fanout Distribution		Crystal LVTTL	Yes/No	Yes with Bypass	3	3.465 V	3.135 V
Infineon Technologies CY22381FC	Surface Mount	8-SOIC	8-SOIC	3.9 mm	0.154 in	1:3	CMOS	70 °C	0 °C	Clock Generator Fanout Distribution	200 MHz	Crystal LVTTL	Yes/No	Yes with Bypass	1	3.465 V	3.135 V
Infineon Technologies CY22381SXI-194	Surface Mount	8-SOIC	8-SOIC	3.9 mm	0.154 in	1:3	CMOS	85 °C	-40 °C	Clock Generator Fanout Distribution		Crystal LVTTL	Yes/No	Yes with Bypass	3	3.465 V	3.135 V
Infineon Technologies CY22381FC	Surface Mount	8-SOIC	8-SOIC	3.9 mm	0.154 in	1:3	CMOS	70 °C	0 °C	Clock Generator Fanout Distribution	200 MHz	Crystal LVTTL	Yes/No	Yes with Bypass	1	3.465 V	3.135 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	79	$ 3.83

Description

General part information

CY22381 Series

Clock Generator IC 166MHz 8-SOIC (0.154", 3.90mm Width)
