C0RRG-1606G

Active

CW Industries

DIP CABLE - CDR16G/AE16G/CDR16G

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide CWR-13x Dip Conn

C0RRG-1606G

Active

CW Industries

DIP CABLE - CDR16G/AE16G/CDR16G

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide CWR-13x Dip Conn

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C0RRG-1606G	C0RRG-1 Series

Cable Termination	IDC	IDC
Color	-	Ribbon, Multiple
Connector Type	DIP to DIP, Reversed	DIP to DIP, Reversed
Contact Finish	Gold	Gold
Contact Finish Thickness	10 Áin	10 Áin
Contact Finish Thickness	0.25 Ám	0.25 Ám
Features	Strain Relief	Strain Relief
Length	152.4 mm	152.4 mm
Length	6 "	6 "
Length	0.5 '	0.5 '
Length	-	1.5 - 3 ft
Length	-	457.2 - 914.4 mm
Number of Positions	16	16
Number of Positions	-	14
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded
Usage	Socket (0.3"), Board In	Socket (0.3"), Board In

C0RRG-1 Series

DIP CABLE - CDR16G/AE16M/CDR16G

Part	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Connector Type	Features	Pitch - Connector	Pitch - Connector	Shielding	Length	Length	Length	Color	Usage	Contact Finish	Cable Termination	Number of Positions	Length [x]	Length [x]	Number of Positions
CW Industries C0RRG-1606M	2	10 Áin	0.25 Ám	0.05 "	1.27 mm	DIP to DIP, Reversed	Strain Relief	0.1 in	2.54 mm	Unshielded	152.4 mm	6 "	0.5 '	Multiple, Ribbon	Board In, Socket (0.3")	Gold	IDC	16
CW Industries C0RRG-1636M	2	10 Áin	0.25 Ám	0.05 "	1.27 mm	DIP to DIP, Reversed	Strain Relief	0.1 in	2.54 mm	Unshielded				Multiple, Ribbon	Board In, Socket (0.3")	Gold	IDC	16	3 ft	914.4 mm
CW Industries C0RRG-1406G	2	10 Áin	0.25 Ám	0.05 "	1.27 mm	DIP to DIP, Reversed	Strain Relief	0.1 in	2.54 mm	Unshielded	152.4 mm	6 "	0.5 '		Board In, Socket (0.3")	Gold	IDC				14
CW Industries C0RRG-1418M	2	10 Áin	0.25 Ám	0.05 "	1.27 mm	DIP to DIP, Reversed	Strain Relief	0.1 in	2.54 mm	Unshielded				Multiple, Ribbon	Board In, Socket (0.3")	Gold	IDC		1.5 ft	457.2 mm	14
CW Industries C0RRG-1606G	2	10 Áin	0.25 Ám	0.05 "	1.27 mm	DIP to DIP, Reversed	Strain Relief	0.1 in	2.54 mm	Unshielded	152.4 mm	6 "	0.5 '		Board In, Socket (0.3")	Gold	IDC	16
CW Industries C0RRG-1418G	2	10 Áin	0.25 Ám	0.05 "	1.27 mm	DIP to DIP, Reversed	Strain Relief	0.1 in	2.54 mm	Unshielded					Board In, Socket (0.3")	Gold	IDC		1.5 ft	457.2 mm	14
CW Industries C0RRG-1618G	2	10 Áin	0.25 Ám	0.05 "	1.27 mm	DIP to DIP, Reversed	Strain Relief	0.1 in	2.54 mm	Unshielded					Board In, Socket (0.3")	Gold	IDC	16	1.5 ft	457.2 mm
CW Industries C0RRG-1618M	2	10 Áin	0.25 Ám	0.05 "	1.27 mm	DIP to DIP, Reversed	Strain Relief	0.1 in	2.54 mm	Unshielded				Multiple, Ribbon	Board In, Socket (0.3")	Gold	IDC	16	1.5 ft	457.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.83
		10	$ 8.31
		25	$ 7.51
		50	$ 6.96
		100	$ 6.47
		250	$ 5.89
		500	$ 5.50
		1000	$ 5.14

Description

General part information

C0RRG-1 Series

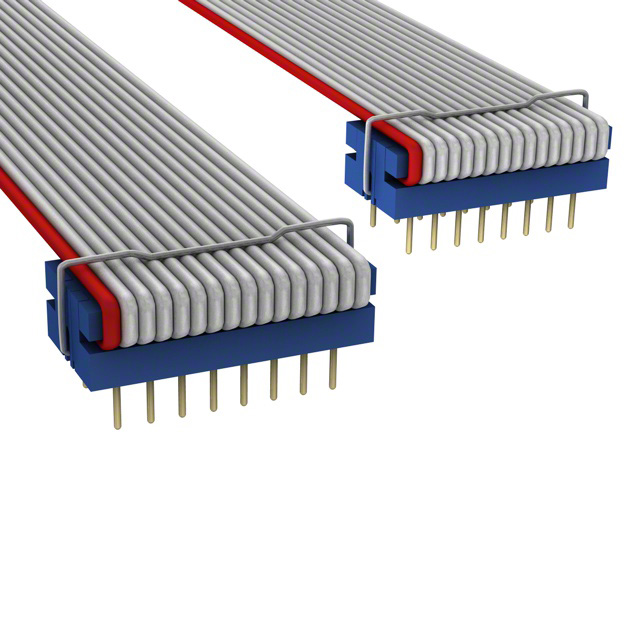

16 Position Cable Assembly Rectangular DIP to DIP, Reversed 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet

CWR-13x Dip Conn

Datasheet
