ZER-14V-S
ActiveJST Sales America Inc.

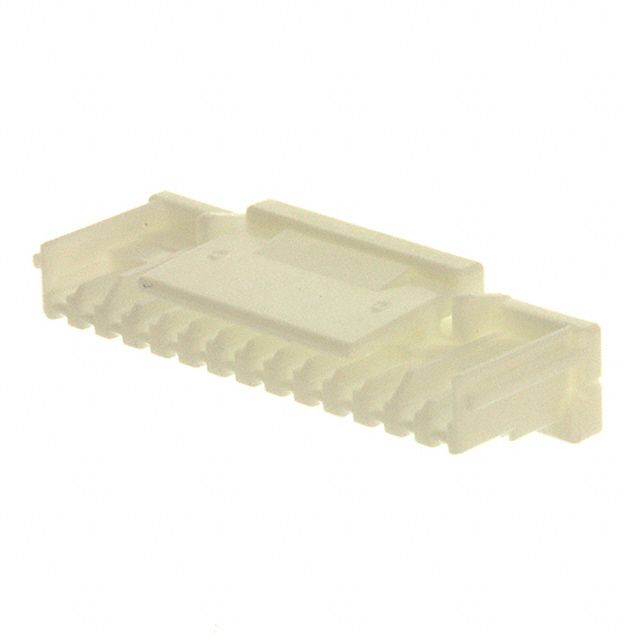

CONN RCPT HSG 14POS 1.50MM
Deep-Dive with AI
Search across all available documentation for this part.
ZER-14V-S
ActiveJST Sales America Inc.
CONN RCPT HSG 14POS 1.50MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ZER-14V-S | ZER Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Holder | Latch Holder |
| Insulation Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 14 | 2 - 15 |
| Number of Positions | - | 16 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Pitch [x] | 1.5 mm | 1.5 mm |
| Pitch [x] | 0.059 in | 0.059 in |
ZER Series
CONN RCPT HSG 13POS 1.50MM
| Part | Insulation Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Number of Positions | Contact Termination | Number of Rows | Pitch [x] | Pitch [x] | Note | Connector Type | Contact Type | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. ZER-13V-S | Polybutylene Terephthalate (PBT) | Natural | -25 °C | 85 °C | Latch Holder | 13 | Crimp | 1 | 1.5 mm | 0.059 in | Contacts Not Included | Receptacle | Female Socket | Free Hanging (In-Line) | |
JST Sales America Inc. ZER-03V-S | Polybutylene Terephthalate (PBT) | Natural | -25 °C | 85 °C | Latch Holder | Crimp | 1 | 1.5 mm | 0.059 in | Contacts Not Included | Receptacle | Female Socket | Free Hanging (In-Line) | ||
JST Sales America Inc. ZER-12V-S | Polybutylene Terephthalate (PBT) | Natural | -25 °C | 85 °C | Latch Holder | 12 | Crimp | 1 | 1.5 mm | 0.059 in | Contacts Not Included | Receptacle | Female Socket | Free Hanging (In-Line) | |
JST Sales America Inc. ZER-02V-S | Polybutylene Terephthalate (PBT) | Natural | -25 °C | 85 °C | Latch Holder | 2 | Crimp | 1 | 1.5 mm | 0.059 in | Contacts Not Included | Receptacle | Female Socket | Free Hanging (In-Line) | |
JST Sales America Inc. ZER-16V-S | Polybutylene Terephthalate (PBT) | Natural | -25 °C | 85 °C | Latch Holder | Crimp | 1 | 1.5 mm | 0.059 in | Contacts Not Included | Receptacle | Female Socket | Free Hanging (In-Line) | 16 | |
JST Sales America Inc. ZER-06V-S | Polybutylene Terephthalate (PBT) | Natural | -25 °C | 85 °C | Latch Holder | 6 | Crimp | 1 | 1.5 mm | 0.059 in | Contacts Not Included | Receptacle | Female Socket | Free Hanging (In-Line) | |
JST Sales America Inc. ZER-05V-S | Polybutylene Terephthalate (PBT) | Natural | -25 °C | 85 °C | Latch Holder | Crimp | 1 | 1.5 mm | 0.059 in | Contacts Not Included | Receptacle | Female Socket | Free Hanging (In-Line) | ||
JST Sales America Inc. ZER-07V-S | Polybutylene Terephthalate (PBT) | Natural | -25 °C | 85 °C | Latch Holder | 7 | Crimp | 1 | 1.5 mm | 0.059 in | Contacts Not Included | Receptacle | Female Socket | Free Hanging (In-Line) | |
JST Sales America Inc. ZER-15V-S | Polybutylene Terephthalate (PBT) | Natural | -25 °C | 85 °C | Latch Holder | 15 | Crimp | 1 | 1.5 mm | 0.059 in | Contacts Not Included | Receptacle | Female Socket | Free Hanging (In-Line) | |
JST Sales America Inc. ZER-14V-S | Polybutylene Terephthalate (PBT) | Natural | -25 °C | 85 °C | Latch Holder | 14 | Crimp | 1 | 1.5 mm | 0.059 in | Contacts Not Included | Receptacle | Female Socket | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.28 | |
| 10 | $ 0.24 | |||
| 25 | $ 0.21 | |||
| 50 | $ 0.20 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.16 | |||
| 2000 | $ 0.12 | |||
| 4000 | $ 0.12 | |||
Description
General part information
ZER Series
14 Rectangular Connectors - Housings Receptacle Natural 0.059" (1.50mm)
