BC840E

Active

Fanstel Corp.

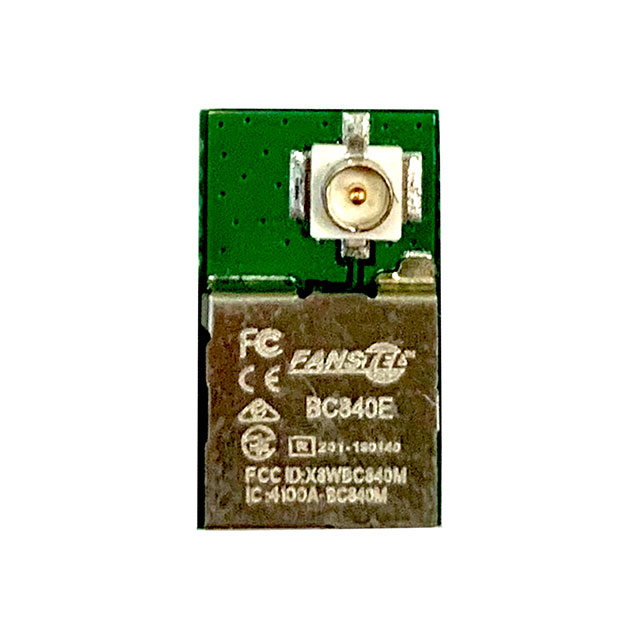

RF TXRX MOD 802.15.4 BTU.FL SMD

Search across all available documentation for this part.

Active

Fanstel Corp.

RF TXRX MOD 802.15.4 BTU.FL SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

802.15.4, Bluetooth Bluetooth v5.0, Thread, Zigbee® Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BC840E	BC840 Series

Antenna Type	Antenna Not Included, U.FL	Antenna Not Included, U.FL, PCB Trace
Data Rate	2 Mbps	2 Mbps
For Use With/Related Products	-	BC840M-p, nRF52840, BC840-p, BC840E-p
Frequency	2.4 GHz	2.4 GHz
Memory Size	1 MB, 256 kB	1 - 256 MB
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	64-SMD Module	64-SMD Module
Power - Output	8 dBm	8 dBm
Protocol	Zigbee®, Thread, Bluetooth v5.0	Zigbee®, Thread, Bluetooth v5.0
RF Family/Standard	Bluetooth, 802.15.4	Bluetooth, 802.15.4
Serial Interfaces	UART, ADC, GPIO, USB, PWM, I2C, SPI, I2S	UART, ADC, GPIO, USB, PWM, I2C, SPI, I2S
Supplied Contents	-	Board(s), Antenna(s)
Type	-	ANT, Transceiver, 802.15.4 (Thread, Zigbee®), Bluetooth® 5.x (BLE)
Utilized IC / Part	nRF52840-CKAA	nRF52840-CKAA
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	1.7 V	1.7 V

EVAL BOARD FOR BC840M-P

Part	For Use With/Related Products	Type	Supplied Contents	Memory Size	Utilized IC / Part	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Power - Output	Frequency	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Protocol	Data Rate	Package / Case	Antenna Type	Serial Interfaces
Fanstel Corp. EV-BC840M-P	BC840M-p, nRF52840	802.15.4 (Thread, Zigbee®), ANT, Bluetooth® 5.x (BLE), Transceiver	Board(s)
Fanstel Corp. EV-BC840-P	BC840-p, nRF52840	802.15.4 (Thread, Zigbee®), ANT, Bluetooth® 5.x (BLE), Transceiver	Board(s)
Fanstel Corp. BC840E				1 MB, 256 kB	nRF52840-CKAA	85 °C	-40 °C	802.15.4, Bluetooth	8 dBm	2.4 GHz	Surface Mount	5.5 V	1.7 V	Bluetooth v5.0, Thread, Zigbee®	2 Mbps	64-SMD Module	Antenna Not Included, U.FL	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB
Fanstel Corp. EV-BC840E-P	BC840E-p, nRF52840	802.15.4 (Thread, Zigbee®), ANT, Bluetooth® 5.x (BLE), Transceiver	Antenna(s), Board(s)
Fanstel Corp. BC840M				1 MB, 256 kB	nRF52840-CKAA	85 °C	-40 °C	802.15.4, Bluetooth	8 dBm	2.4 GHz	Surface Mount	5.5 V	1.7 V	Bluetooth v5.0, Thread, Zigbee®	2 Mbps	64-SMD Module	PCB Trace	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB
