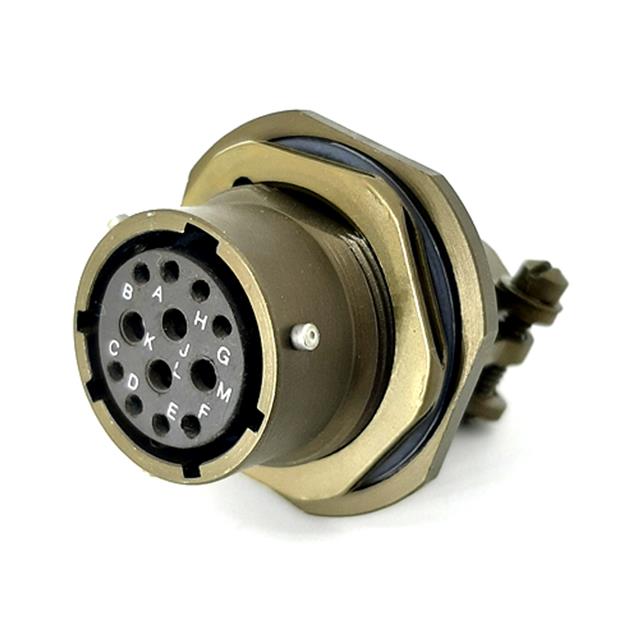

MSW07A14-12S-SR
12 Position Circular Connector Plug, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | MSW07A14-12S-SR |
|---|---|
| Applications | Military |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Cadmium |
| Current Rating Options | 7.5A, 13A |
| Fastening Type | Bayonet Lock |
| Features | Strain Relief |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Positions | 12 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Finish | Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert Length | 14 mm |
| Shell Size - Insert Width | 12 mm |
| Termination | Solder |
| Voltage Rating | 800 V |
