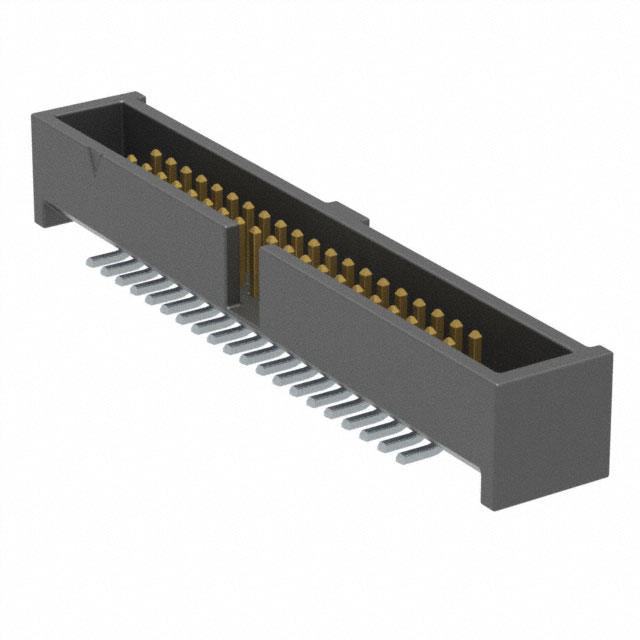

ESHF-120-01-S-D-SM

Active

Samtec Inc.

CONN HEADER SMD 40POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ESHF-120-01-S-D-SM

Active

Samtec Inc.

CONN HEADER SMD 40POS 1.27MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESHF-120-01-S-D-SM

Connector Type	Header
Contact Finish - Mating	Gold
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	5.45 mm
Insulation Height	0.215 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

ESHF-120 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Height	Insulation Height	Insulation Color	Mounting Type	Features	Number of Rows	Contact Shape	Termination	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Shrouding	Number of Positions	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Fastening Type	Contact Length - Post [x]	Contact Length - Post	Contact Material	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Insulation Material	Insulation Height	Contact Finish Thickness - Mating
Samtec Inc. ESHF-120-01-L-D-TH	-55 °C	125 °C	Header	5.33 mm	0.21 in	Black	Through Hole	Keying Slot	2	Square	Solder	All	3.05 mm	0.12 in	Tin	Shrouded - 4 Wall	40	Board to Cable/Wire	10 çin	0.25 çm	Male Pin	Push-Pull	0.075 in	1.91 mm	Phosphor Bronze	0.05 in	1.27 mm	0.05 in	1.27 mm	Gold	Liquid Crystal Polymer (LCP)
Samtec Inc. ESHF-120-01-S-D-SM	-55 °C	125 °C	Header	5.45 mm		Black	Surface Mount	Keying Slot	2	Square	Solder	All	3.05 mm	0.12 in		Shrouded - 4 Wall	40	Board to Cable/Wire			Male Pin	Push-Pull			Phosphor Bronze	0.05 in	1.27 mm	0.05 in	1.27 mm	Gold	Liquid Crystal Polymer (LCP)	0.215 in
Samtec Inc. ESHF-120-01-F-D	-55 °C	125 °C	Header			Black		Keying Slot	2	Square	Solder	All	3.05 mm	0.12 in		Shrouded - 4 Wall	40	Board to Cable/Wire			Male Pin	Push-Pull			Phosphor Bronze	0.05 in	1.27 mm	0.05 in	1.27 mm	Gold	Liquid Crystal Polymer (LCP)		Flash
Samtec Inc. ESHF-120-01-L-D-TH-TR	-55 °C	125 °C	Header	5.33 mm	0.21 in	Black	Through Hole	Keying Slot	2	Square	Solder	All	3.05 mm	0.12 in	Tin	Shrouded - 4 Wall	40	Board to Cable/Wire	10 çin	0.25 çm	Male Pin	Push-Pull	0.075 in	1.91 mm	Phosphor Bronze	0.05 in	1.27 mm	0.05 in	1.27 mm	Gold	Liquid Crystal Polymer (LCP)
Samtec Inc. ESHF-120-01-L-D-TH-LC	-55 °C	125 °C	Header	5.33 mm	0.21 in	Black	Through Hole	Board Lock Keying Slot	2	Square	Solder	All	3.05 mm	0.12 in	Tin	Shrouded - 4 Wall	40	Board to Cable/Wire	10 çin	0.25 çm	Male Pin	Push-Pull	0.075 in	1.91 mm	Phosphor Bronze	0.05 in	1.27 mm	0.05 in	1.27 mm	Gold	Liquid Crystal Polymer (LCP)
Samtec Inc. ESHF-120-01-L-D-SM-LC-TR	-55 °C	125 °C	Header	5.45 mm		Black	Surface Mount	Board Lock Keying Slot	2	Square	Solder	All	3.05 mm	0.12 in	Tin	Shrouded - 4 Wall	40	Board to Cable/Wire	10 çin	0.25 çm	Male Pin	Push-Pull			Phosphor Bronze	0.05 in	1.27 mm	0.05 in	1.27 mm	Gold	Liquid Crystal Polymer (LCP)	0.215 in
Samtec Inc. ESHF-120-01-S-D-SM-LC	-55 °C	125 °C	Header	5.45 mm		Black	Surface Mount	Board Lock Keying Slot	2	Square	Solder	All	3.05 mm	0.12 in		Shrouded - 4 Wall	40	Board to Cable/Wire			Male Pin	Push-Pull			Phosphor Bronze	0.05 in	1.27 mm	0.05 in	1.27 mm	Gold	Liquid Crystal Polymer (LCP)	0.215 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.15

Description

General part information

ESHF-120 Series

Connector Header Surface Mount 40 position 0.050" (1.27mm)
