Technical Specifications
Parameters and characteristics for this part

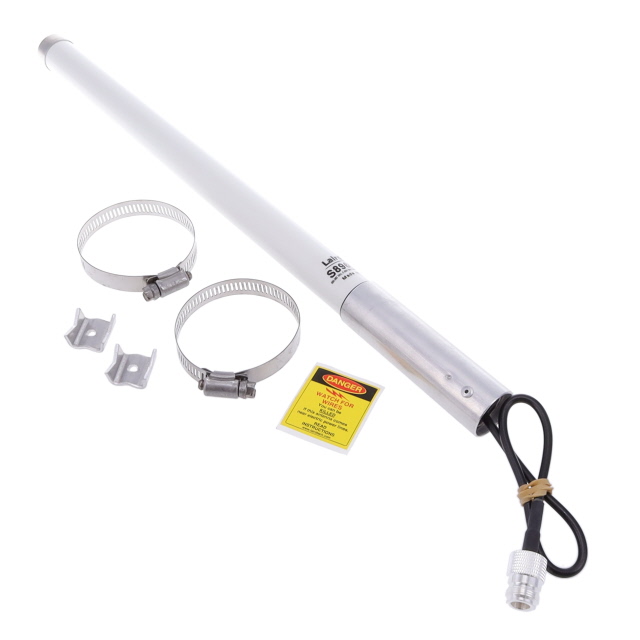

| Specification | S8960B |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | WiMax™ |
| Frequency (Center/Band) | 928 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 960 MHz |
| Frequency Range [Min] | 896 MHz |
| Height (Max) | 444.5 mm |
| Height (Max) [Max] [z] | 17.5 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| RF Family/Standard | WiFi |
| Termination | N Type Female |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 122.33 | |
| 10 | $ 99.60 | |||
| 25 | $ 95.36 | |||
Description
General part information
S8960 Series
Baton/Stick Antenna, Single Band, ISM / LoRaWAN, External Mount, Pole/Mast/Bracket Mount, N-type, Omnidirectional, Single Port, S Series
