2702223

Active

Phoenix Contact

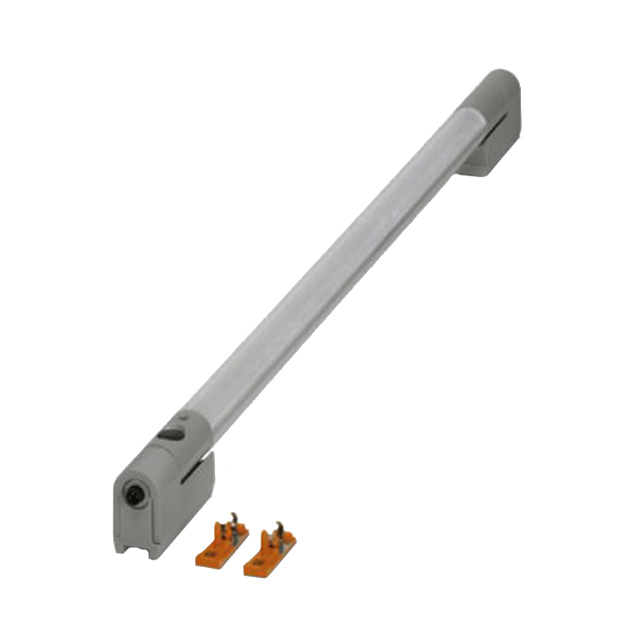

LED ENG COOL WHT RECT 5000K

Search across all available documentation for this part.

Active

Phoenix Contact

LED ENG COOL WHT RECT 5000K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Engine - White, Cool Rectangle

Technical documentation and resources

Specification	2702223	27022 Series

CCT (K)	5000 K	4000 - 5000 K
Color	Cool, White	Neutral, White, Cool
Configuration	Rectangle	Rectangle, Linear Light Strip, Plug and Play
CRI (Color Rendering Index)	75	75 - 85
Height [z]	38 mm	38 - 44 mm
Luminous Flux @ Current/Temperature	560 lm	340 - 685 lm
Size / Dimension	-	23 - 91 mm
Size / Dimension	-	265 - 375 mm
Type	LED Engine	LED Module, LED Engine
Voltage - Forward (Vf) (Typ)	24 V	24 V

Part	Color	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Configuration	Luminous Flux @ Current/Temperature	CCT (K)	Type	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)
Phoenix Contact 2702226	Neutral, White	91 mm	315.4 mm	44 mm	Rectangle	685 lm	4000 K	LED Module	85
Phoenix Contact 2702224	Neutral, White	91 mm	265 mm	44 mm	Rectangle	685 lm	4000 K	LED Engine	85
Phoenix Contact 2702223	Cool, White			38 mm	Rectangle	560 lm	5000 K	LED Engine	75	24 V
Phoenix Contact 2702228	Neutral, White	91 mm	315.4 mm	44 mm	Rectangle	685 lm	4000 K	LED Module	85
Phoenix Contact 2702222	Cool, White	23 mm	375 mm	38 mm	Linear Light Strip, Plug and Play	340 lm	5000 K	LED Engine	75	24 V
Phoenix Contact 2702227	Neutral, White	91 mm	315.4 mm	44 mm	Rectangle	685 lm	4000 K	LED Module	85
