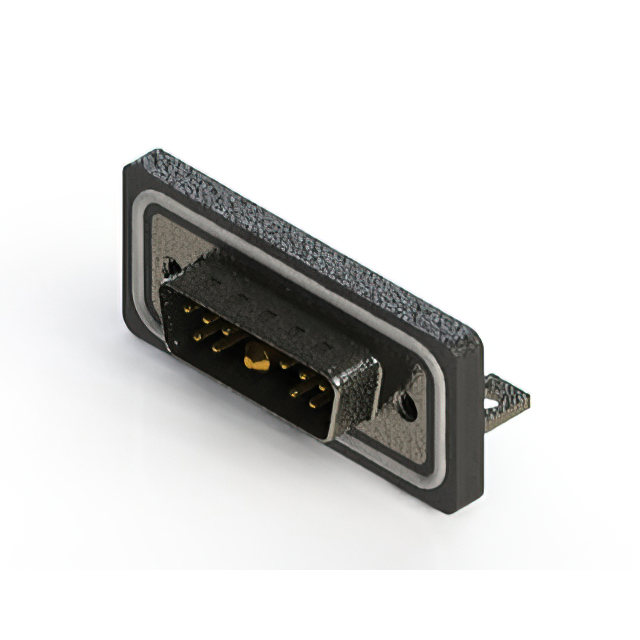

629W11W1140-1NC
ActiveEDAC Inc.
CONN D-SUB PLUG 11POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
629W11W1140-1NC
ActiveEDAC Inc.
CONN D-SUB PLUG 11POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 629W11W1140-1NC |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.127 µm |
| Contact Finish Thickness | 5 µin |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 5A, 10A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents, Mounting Brackets, Shielded |
| Flange Feature | Housing/Shell (M3) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 11 |
| Number of Positions [custom] | 10 |
| Number of Positions [custom] | 1 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 11C1, 11W1 |
| Shell Size, Connector Layout | 2 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
629W11W Series
| Part | Number of Rows | Features | Connector Type | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Ingress Protection | Shell Size, Connector Layout | Shell Size, Connector Layout | Color | Termination | Shell Material, Finish | Number of Positions [custom] | Number of Positions [custom] | Number of Positions | Connector Style | Material Flammability Rating | Voltage Rating | Flange Feature | Dielectric Material | Contact Material | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Grounding Indents Shielded | Male Pins Plug | 10A 5A | 0.127 µm | 5 µin | Panel Mount Right Angle Through Hole | Gold | -55 °C | 125 °C | Signal and Power | IP67 - Dust Tight Waterproof | 11C1 11W1 | 2 | Black | Solder | Nickel Plated Steel | 10 | 1 | 11 | Combo D-Sub | UL94 V-0 | 125 VDC | Housing/Shell (M3) | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | |
EDAC Inc. | 2 | Board Lock Filter Grounding Indents Mounting Brackets Shielded | Male Pins Plug | 0.76 Ám | 30 Áin | Panel Mount Right Angle Through Hole | Gold | -55 °C | 125 °C | Signal and Power | IP67 - Dust Tight Waterproof | 11C1 11W1 | 2 | Black | Solder | Nickel Plated Steel | 10 | 1 | 11 | Combo D-Sub | UL94 V-0 | 125 VDC | Housing/Shell (M3) | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 5 A 20 A | |
EDAC Inc. | 2 | Grounding Indents Mounting Brackets Shielded | Male Pins Plug | 0.127 µm | 5 µin | Panel Mount Right Angle Through Hole | Gold | -55 °C | 125 °C | Signal and Power | IP67 - Dust Tight Waterproof | 11C1 11W1 | 2 | Black | Solder | Nickel Plated Steel | 10 | 1 | 11 | Combo D-Sub | UL94 V-0 | 125 VDC | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 5 A 20 A | |
EDAC Inc. | 2 | Board Lock Filter Grounding Indents Mounting Brackets Shielded | Male Pins Plug | 0.76 Ám | 30 Áin | Panel Mount Right Angle Through Hole | Gold | -55 °C | 125 °C | Signal and Power | IP67 - Dust Tight Waterproof | 11C1 11W1 | 2 | Black | Solder | Nickel Plated Steel | 10 | 1 | 11 | Combo D-Sub | UL94 V-0 | 125 VDC | Housing/Shell (M3) | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 5 A 30 A | |
EDAC Inc. | 2 | Grounding Indents Mounting Brackets Shielded | Male Pins Plug | 0.76 Ám | 30 Áin | Through Hole Right Angle | Gold | -55 °C | 125 °C | Signal and Power | IP67 - Dust Tight Waterproof | 11C1 11W1 | 2 | Black | Solder | Nickel Plated Steel | 10 | 1 | 11 | Combo D-Sub | UL94 V-0 | 125 VDC | Housing/Shell (M3) | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 5 A 40 A | |
EDAC Inc. | 2 | Grounding Indents Shielded | Male Pins Plug | 0.76 Ám | 30 Áin | Panel Mount Right Angle Through Hole | Gold | -55 °C | 125 °C | Signal and Power | IP67 - Dust Tight Waterproof | 11C1 11W1 | 2 | Black | Solder | Nickel Plated Steel | 10 | 1 | 11 | Combo D-Sub | UL94 V-0 | 125 VDC | Housing/Shell (M3) | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 5 A 30 A | |
EDAC Inc. | 2 | Grounding Indents Mounting Brackets Shielded | Male Pins Plug | 10A 5A | 0.127 µm | 5 µin | Panel Mount Right Angle Through Hole | Gold | -55 °C | 125 °C | Signal and Power | IP67 - Dust Tight Waterproof | 11C1 11W1 | 2 | Black | Solder | Nickel Plated Steel | 10 | 1 | 11 | Combo D-Sub | UL94 V-0 | 125 VDC | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | |
EDAC Inc. | 2 | Grounding Indents Mounting Brackets Shielded | Male Pins Plug | 10A 5A | 0.127 µm | 5 µin | Through Hole Right Angle | Gold | -55 °C | 125 °C | Signal and Power | IP67 - Dust Tight Waterproof | 11C1 11W1 | 2 | Black | Solder | Nickel Plated Steel | 10 | 1 | 11 | Combo D-Sub | UL94 V-0 | 125 VDC | Housing/Shell (M3) | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | |
EDAC Inc. | 2 | Grounding Indents Shielded | Male Pins Plug | 10A 5A | 0.76 Ám | 30 Áin | Panel Mount Right Angle Through Hole | Gold | -55 °C | 125 °C | Signal and Power | IP67 - Dust Tight Waterproof | 11C1 11W1 | 2 | Black | Solder | Nickel Plated Steel | 10 | 1 | 11 | Combo D-Sub | UL94 V-0 | 125 VDC | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | |
EDAC Inc. | 2 | Board Lock Grounding Indents Mounting Brackets Shielded | Male Pins Plug | 0.76 Ám | 30 Áin | Panel Mount Right Angle Through Hole | Gold | -55 °C | 125 °C | Signal and Power | IP67 - Dust Tight Waterproof | 11C1 11W1 | 2 | Black | Solder | Nickel Plated Steel | 10 | 1 | 11 | Combo D-Sub | UL94 V-0 | 125 VDC | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 5 A 30 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 400 | $ 14.24 | |
Description
General part information
629W11W Series
11 (10 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector
