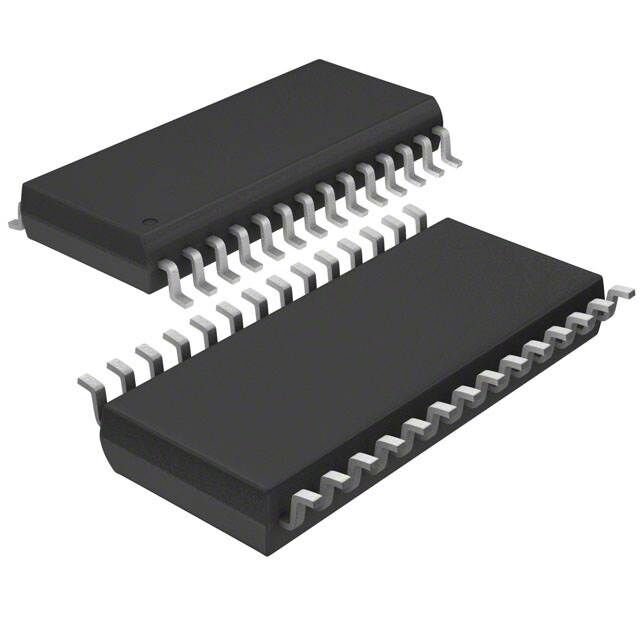

FT245RNL-TUBE
ActiveFTDI, Future Technology Devices International Ltd
USB FULL SPEED TO PARALLEL FIFO
FT245RNL-TUBE
ActiveFTDI, Future Technology Devices International Ltd
USB FULL SPEED TO PARALLEL FIFO
Description
General part information
FT245RNL-TUBE
USB Bridge, USB to FIFO USB 2.0 FIFO Interface 28-SSOP
Technical Specifications
Parameters and characteristics for this part
| Specification | FT245RNL-TUBE |
|---|---|
| Current - Supply | 15 mA |
| Function | Bridge, USB to FIFO |
| Interface | FIFO |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Length | 0.209 in |
| Package Name | 28-SSOP |
| Package Width | 5.3 mm |
| Protocol | USB |
| Standards | USB 2.0 |
| Voltage - Supply (Maximum) | 5.25 V |
| Voltage - Supply (Minimum) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
