EPM.00.250.NTN

Active

LEMO

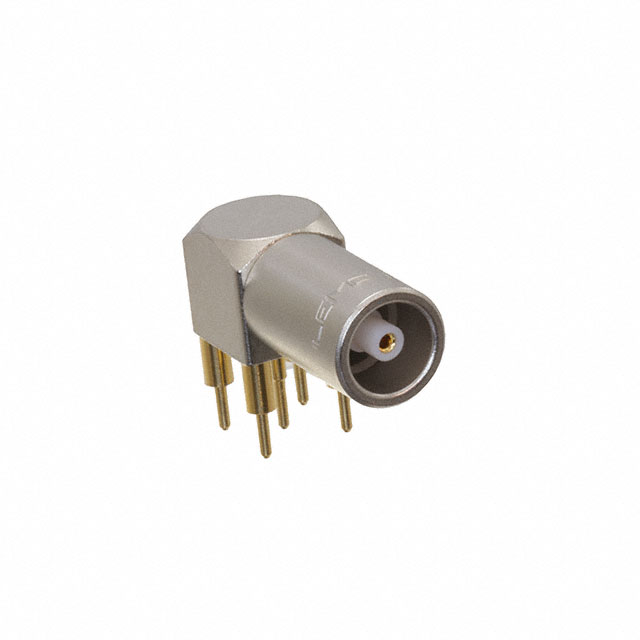

CONN NIMCAMAC RCPT R/A 50OHM PCB

Search across all available documentation for this part.

Active

LEMO

CONN NIMCAMAC RCPT R/A 50OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	EPM.00.250.NTN

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	NIM-CAMAC CD/N 549
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP50
Mating Cycles	5000
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	700 VDC

CONN NIMCAMAC RCPT R/A 50OHM PCB

Part	Housing Color	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Center Contact Plating	Shield Termination	Voltage Rating	Number of Ports	Contact Termination	Body Finish	Dielectric Material	Connector Style	Fastening Type	Mounting Type	Ingress Protection	Connector Type	Center Contact Material	Impedance
LEMO EPM.00.250.NTN	Silver	5000	-55 °C	260 ░C	Brass	Gold	Solder	700 VDC	1	Solder	Nickel	Polytetrafluoroethylene (PTFE)	NIM-CAMAC CD/N 549	Push-Pull	Through Hole, Right Angle	IP50	Female Socket, Receptacle	Bronze	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Through Hole, Right Angle Solder
