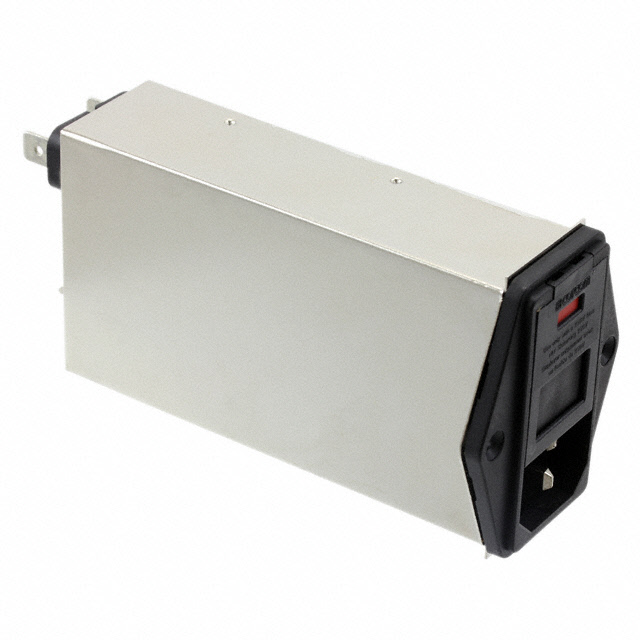

PE000SL6C

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	PE000SL6C

Accomodates a Fuse	True
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	6 A
Current Rating - Filter	6 A
Features	Conversion Clip
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	29.21 mm
Panel Cutout Dimensions [y]	55.91 mm
Termination	0.187 "
Termination	4.7 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	120 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet	Connector Type	Filter Type	Connector Style	Approval Agency	Current Rating - Filter	Termination	Termination	Termination	Mounting Type	Features	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Accomodates a Fuse	Fuse Holder, Drawer
TE Connectivity Corcom Filters PE000SL6C	120 VAC	6 A	Receptacle, Male Blades - Module	Filtered (EMI, RFI) - Commercial	IEC 320-C14	CSA, UL, VDE	6 A	0.187 "	4.7 mm	Quick Connect	Flange, Panel Mount	Conversion Clip	29.21 mm	55.91 mm		Fuse Holder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	48	$ 44.28

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
