EKZE250ETD331MH15D

Obsolete

Chemi-Con

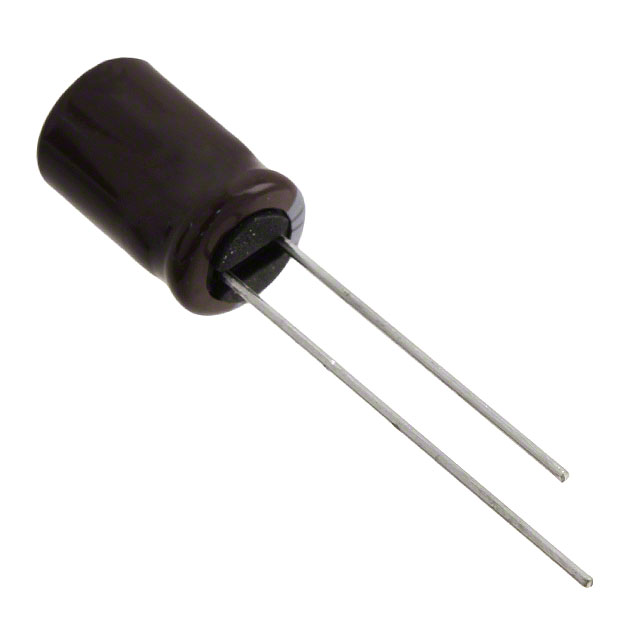

CAP ALUM 330UF 20% 25V RADIAL TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKZE250ETD331MH15D

Obsolete

Chemi-Con

CAP ALUM 330UF 20% 25V RADIAL TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EKZE250ETD331MH15D	EKZE250E Series

Applications	General Purpose	General Purpose
Capacitance	330 µF	1.5 - 2200 µF
Height - Seated (Max)	-	0.492 - 1.24 in
Height - Seated (Max)	-	12.5 - 31.5 mm
Height - Seated (Max)	-	14 mm
Height - Seated (Max) [Max] [z]	16.5 mm	8 - 36.5 mm
Height - Seated (Max) [Max] [z]	16.51 mm	0.315 - 16.51 in
Impedance	56 mOhms	15 - 300 mOhms
Lead Spacing	3.5 mm	2 - 7.5 mm
Lead Spacing	0.138 in	0.079 - 0.295 in
Lifetime @ Temp.	3000 Hrs	2000 - 5000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	995 mA	1.03 - 995 A
Ripple Current @ Low Frequency	497.5 mA	1.092 - 715 mA
Size / Dimension [diameter]	0.315 "	0.197 - 0.63 in
Size / Dimension [diameter]	8 mm	5 - 16 mm
Tolerance	20 %	20 %
Voltage - Rated	25 VDC	25 VDC

EKZE250E Series

CAP ALUM 470UF 20% 25V RADIAL TH

Part	Impedance	Lead Spacing	Lead Spacing	Capacitance	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Polarization	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Lifetime @ Temp.	Package / Case	Ripple Current @ Low Frequency	Applications	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con EKZE250ETD471MJ16S	38 mOhms	5 mm	0.197 in	470 µF	20 %	-40 °C	105 ░C	Polar	1.43 A	10 mm	0.394 in	25 VDC	4000 Hrs	Radial, Can	715 mA	General Purpose	Through Hole	0.689 in	17.5 mm
Chemi-Con EKZE250ETE222MK35S	15 mOhms	5 mm	0.197 in	2200 µF	20 %	-40 °C	105 ░C	Polar	3.4 A	12.5 mm	0.492 in	25 VDC	5000 Hrs	Radial, Can	2.55 A	General Purpose	Through Hole			36.5 mm	1.437 in
Chemi-Con EKZE250ETC221MHB5D	72 mOhms	3.5 mm	0.138 in	220 µF	20 %	-40 °C	105 ░C	Polar		8 mm	0.315 "	25 VDC	3000 Hrs	Radial, Can	380 mA	General Purpose	Through Hole			13 mm	0.512 "
Chemi-Con EKZE250ELL471MJ16S	38 mOhms	5 mm	0.197 in	470 µF	20 %	-40 °C	105 ░C	Polar	1.43 A	10 mm	0.394 in	25 VDC	4000 Hrs	Radial, Can	715 mA	General Purpose	Through Hole	0.689 in	17.5 mm
Chemi-Con EKZE250ELL681MJ20S	23 mOhms	5 mm	0.197 in	680 µF	20 %	-40 °C	105 ░C	Polar	1.82 A	10 mm	0.394 in	25 VDC	4000 Hrs	Radial, Can	1.092 A	General Purpose	Through Hole	0.846 in	21.5 mm
Chemi-Con EKZE250EC3222MK35S	15 mOhms	5 mm	0.197 in	2200 µF	20 %	-40 °C	105 ░C	Polar	3.4 A	12.5 mm	0.492 in	25 VDC	5000 Hrs	Radial, Can	2.55 A	General Purpose	Through Hole			36.5 mm	1.437 in
Chemi-Con EKZE250ELL821MJ25S	22 mOhms	5 mm	0.197 in	820 µF	20 %	-40 °C	105 ░C	Polar	2.15 A	10 mm	0.394 in	25 VDC	4000 Hrs	Radial, Can	1.29 A	General Purpose	Through Hole			26.5 mm	1.043 in
Chemi-Con EKZE250ETE102MK20S	21 mOhms	5 mm	0.197 in	1000 µF	20 %	-40 °C	105 ░C	Polar	2.36 A	12.5 mm	0.492 in	25 VDC	5000 Hrs	Radial, Can	1.416 A	General Purpose	Through Hole	0.846 in	21.5 mm
Chemi-Con EKZE250ETD470ME11D	300 mOhms	2 mm	0.079 in	47 µF	20 %	-40 °C	105 ░C	Polar	250 mA	5 mm	0.197 "	25 VDC	2000 Hrs	Radial, Can	100 mA	General Purpose	Through Hole	0.492 in	12.5 mm
Chemi-Con EKZE250ETD471MH20D	41 mOhms	3.5 mm	0.138 in	470 µF	20 %	-40 °C	105 ░C	Polar	1.25 A	8 mm	0.315 "	25 VDC	3000 Hrs	Radial, Can	625 mA	General Purpose	Through Hole	0.846 in	21.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

EKZE250E Series

330 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
