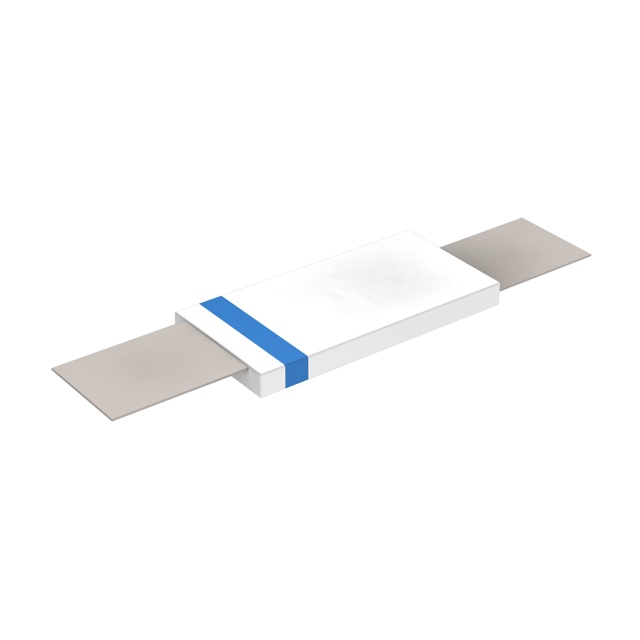

15LR260U
ObsoleteLITTELFUSE
PTC RESET FUSE 15V 2.6A STRAP
15LR260U
ObsoleteLITTELFUSE
PTC RESET FUSE 15V 2.6A STRAP
Description
General part information
15LR260U
Polymeric PTC Resettable Fuse 15V 2.6 A Ih User Defined Strap
Technical Specifications
Parameters and characteristics for this part
| Specification | 15LR260U |
|---|---|
| Approval Agency | cURus, TUV |
| Current - Hold (Ih) (Max) | 2.6 A |
| Current - Max | 100 A |
| Current - Trip (It) | 5.8 A |
| Mounting Type | User Defined |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Strap |
| Resistance - Initial (Ri) (Min) | 20 mOhms |
| Resistance - Post Trip (R1) (Max) | 63 mOhms |
| Size / Dimension Length | 0.866 in |
| Size / Dimension Width | 0.205 in |
| Thickness (Max) | 0.039 in |
| Time to Trip | 5 s |
| Type | Polymeric |
| Voltage - Max | 15 V |
