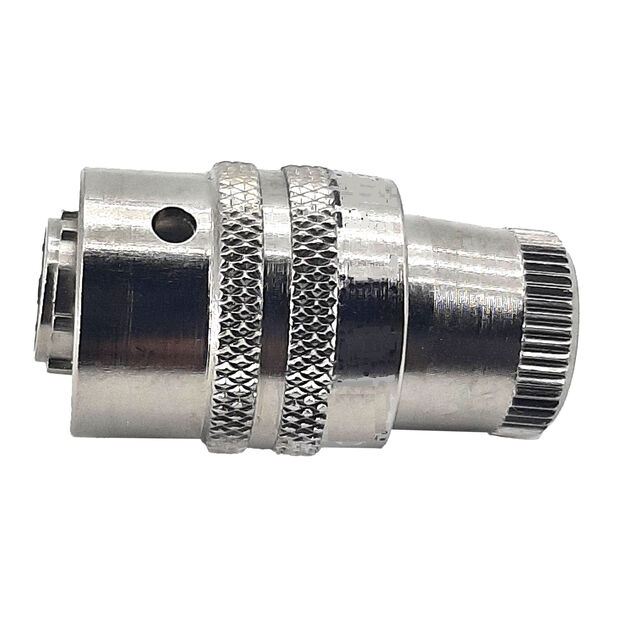

MSW06E12-3S-44
ActiveMilspecwest, LLC
PLUG, ENVIRONMENTAL, ELEC NICK
MSW06E12-3S-44
ActiveMilspecwest, LLC
PLUG, ENVIRONMENTAL, ELEC NICK
Description
General part information
MSW06E12-3S-44
3 Position Circular Connector Plug, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | MSW06E12-3S-44 |
|---|---|
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Current Rating | 13 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | Environment Resistant |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Finish | Electroless Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert Length | 12 mm |
| Shell Size - Insert Width | 3 mm |
| Termination | Solder |
| Voltage Rating | 800 V |
