AMPH-8743RA-050

Active

Pactech

HD MINISAS RA TO MINISAS 0.5M

Search across all available documentation for this part.

Active

Pactech

HD MINISAS RA TO MINISAS 0.5M

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 26.07

General part information

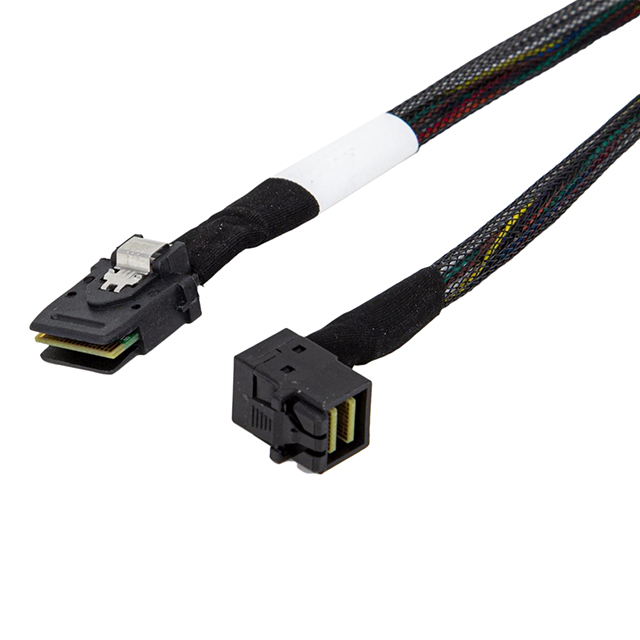

36 Position miniSAS HD SFF-8643, miniSAS SFF-8087 Plug to Plug 1.64' (500.00mm) Black Shielded

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	AMPH-8743RA-050	AMPH-8743 Series

Cable Connectors	miniSAS HD SFF-8643, miniSAS SFF-8087	miniSAS HD SFF-8643, miniSAS SFF-8087
Cable Type	Round	Round
Color	Black	Black
Connector Type	Plug to Plug	Plug to Plug
Fastening Type	Latch Lock	Latch Lock
Features	12Gbps SAS3.0, Amphenol SFF-8643 Right Angle to SFF-8087 Cable	Amphenol SFF-8643 to SFF-8087 Cable, 12Gbps SAS3.0, Amphenol SFF-8643 Right Angle to SFF-8087 Cable
Frequency - Max	-	12 Gbps
Gender	Male to Male	Male to Male
Length	-	350 - 600 mm
Length	-	1.15 - 1.96 ft
Length	-	9.843 in
Length [x]	1.64 ft	1.64 - 9.84 ft
Length [x]	500 mm	250 - 500 mm
Number of Positions	36	36
Shielding	Shielded	Shielded
Usage	Internal	Internal
Wire Gauge	-	30 AWG

HD MINISAS TO MINISAS 0.6M

Part	Gender	Color	Cable Type	Shielding	Features	Number of Positions	Length	Length	Usage	Cable Connectors	Fastening Type	Connector Type	Length [x]	Length [x]	Length [x]	Frequency - Max [Max]	Wire Gauge
Pactech AMPH-8743-600	Male to Male	Black	Round	Shielded	12Gbps SAS3.0, Amphenol SFF-8643 to SFF-8087 Cable	36	600 mm	1.96 ft	Internal	miniSAS HD SFF-8643, miniSAS SFF-8087	Latch Lock	Plug to Plug
Pactech AMPH-8743RA-050	Male to Male	Black	Round	Shielded	12Gbps SAS3.0, Amphenol SFF-8643 Right Angle to SFF-8087 Cable	36			Internal	miniSAS HD SFF-8643, miniSAS SFF-8087	Latch Lock	Plug to Plug	1.64 ft	500 mm
Pactech AMPH-8743-LP-050	Male to Male	Black	Round	Shielded	12Gbps SAS3.0, Amphenol SFF-8643 to SFF-8087 Cable	36			Internal	miniSAS HD SFF-8643, miniSAS SFF-8087	Latch Lock	Plug to Plug	1.64 ft	500 mm
Pactech AMPH-8743-LP-025	Male to Male	Black	Round	Shielded	12Gbps SAS3.0, Amphenol SFF-8643 to SFF-8087 Cable	36			Internal	miniSAS HD SFF-8643, miniSAS SFF-8087	Latch Lock	Plug to Plug	9.84 in	250 mm	9.843 in
Pactech AMPH-8743-LP-035	Male to Male	Black	Round	Shielded	12Gbps SAS3.0, Amphenol SFF-8643 to SFF-8087 Cable	36	350 mm	1.15 ft	Internal	miniSAS HD SFF-8643, miniSAS SFF-8087	Latch Lock	Plug to Plug				12 Gbps	30 AWG
