Description
General part information

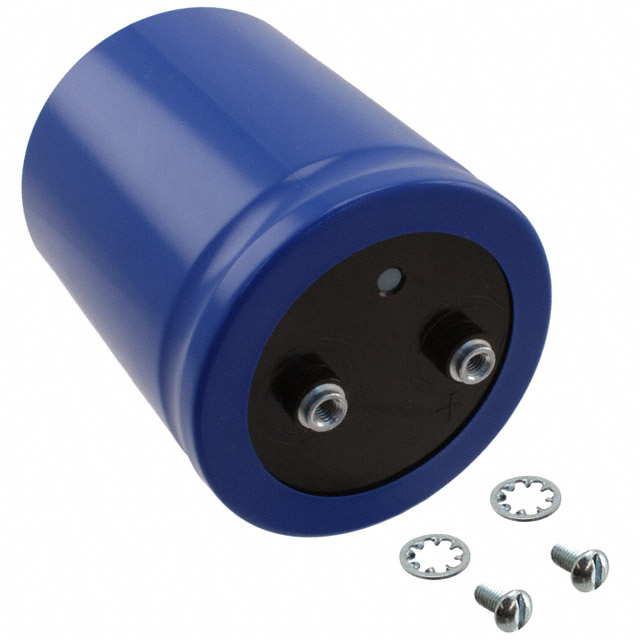

E32D401HPN332ME92M
3300 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 48mOhm @ 120Hz 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | E32D401HPN332ME92M |
|---|---|
| Applications | General Purpose |
| Capacitance | 3300 µF |
| ESR (Equivalent Series Resistance) | 48 mOhm |
| Height - Seated (Max) | 3.661 in |
| Lead Spacing | 1.252 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 14.7896 A, 9.73 A |
| Size / Dimension Diameter | 3 in |
| Tolerance | 20 % |
| Voltage - Rated | 400 V |
