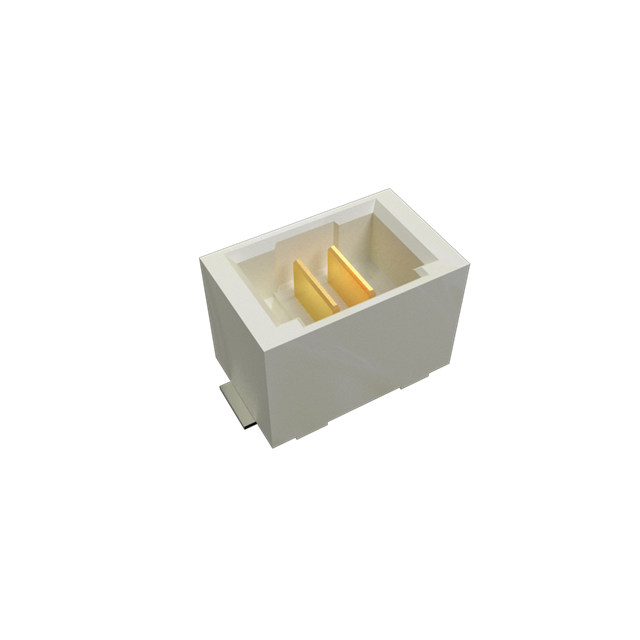

10159560-200421RLF

Active

Amphenol ICC (FCI)

POWERSTAK VERTICAL HEADER 2POS H

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

POWERSTAK VERTICAL HEADER 2POS H

Technical Specifications

Parameters and characteristics for this part

Specification	10159560-200421RLF

Connector Type	Header
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	Flash
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Blade
Current Rating (Amps)	20 A
Fastening Type	Detent Lock
Features	Pick and Place, Board Guide, Solder Retention
Insulation Color	Natural
Insulation Height	0.303 in
Insulation Height	7.7 mm
Insulation Material	Thermoplastic
Mated Stacking Heights	8 mm, 20 mm, 16 mm, 12 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

Part	Contact Finish Thickness - Post	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Style	Mated Stacking Heights	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Contact Type	Connector Type	Number of Positions	Features	Contact Finish - Mating	Voltage Rating	Shrouding	Insulation Height	Insulation Height	Contact Material	Fastening Type	Current Rating (Amps)	Number of Rows	Contact Shape	Mounting Type	Insulation Material	Termination	Material Flammability Rating
Amphenol ICC (FCI) 10159560-200421RLF	Flash	Natural	125 °C	-40 °C	Board to Cable/Wire	8 mm 12 mm 16 mm 20 mm	All	0.203 Ám	8 Áin	0.079 in	2 mm	Gold	Male Blade	Header	2	Board Guide Pick and Place Solder Retention	Gold or Gold GXT™	100 V	Shrouded - 4 Wall	0.303 in	7.7 mm	Copper Alloy	Detent Lock	20 A	1	Rectangular	Surface Mount	Thermoplastic	Solder	UL94 V-0
Amphenol ICC (FCI) 10159560-A00221RLF	Flash	Natural	125 °C	-40 °C	Board to Cable/Wire	6 mm 10 mm 14 mm 18 mm	All	0.203 Ám	8 Áin	0.079 in	2 mm	Gold	Male Blade	Header	10	Board Guide Pick and Place Solder Retention	Gold or Gold GXT™	100 V	Shrouded - 4 Wall	0.224 in	5.69 mm	Copper Alloy	Detent Lock	20 A	1	Rectangular	Surface Mount	Thermoplastic	Solder	UL94 V-0
