AK09970D

Obsolete

Asahi Kasei Microdevices/AKM

IC 3D MAGNETIC SENSOR

Search across all available documentation for this part.

Obsolete

Asahi Kasei Microdevices/AKM

IC 3D MAGNETIC SENSOR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

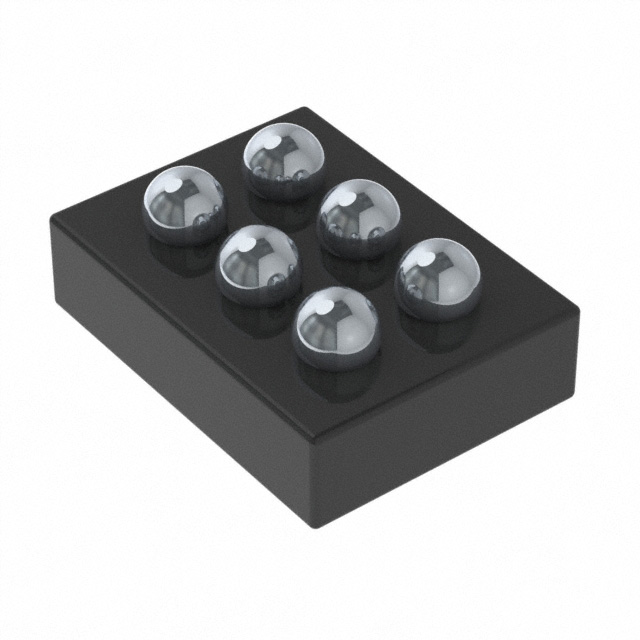

Hall Effect Sensor X, Y, Z Axis 6-WLCSP (1.35x1.35)

Technical documentation and resources

Specification	AK09970D	AK09970 Series

Axis [x]	X	X
Axis [y]	Y	Y
Axis [z]	Z	Z
Features	Selectable Scale	Selectable Scale
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	I2C	I2C, SPI
Package / Case	6-UFBGA, WLCSP	6-UFBGA, WLCSP, 16-WFQFN Exposed Pad
Resolution	16 b	16 b
Sensing Range	-	39 mT
Sensing Range [Max]	36 mT	36 mT
Sensing Range [Min]	-36 mT	-36 mT
Supplier Device Package	6-WLCSP (1.35x1.35)	6-WLCSP (1.35x1.35), 16-QFN (3x3)
Technology	Hall Effect	Hall Effect
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.7 V	1.7 V

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Sensing Range [Max]	Sensing Range [Min]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Resolution	Axis [z]	Axis [y]	Axis [x]	Package / Case	Supplier Device Package	Technology	Mounting Type	Sensing Range
Asahi Kasei Microdevices/AKM AK09970D	3.6 V	1.7 V	Selectable Scale	36 mT	-36 mT	I2C	85 °C	-40 °C	16 b	Z	Y	X	6-UFBGA, WLCSP	6-WLCSP (1.35x1.35)	Hall Effect	Surface Mount
Asahi Kasei Microdevices/AKM AK09970N	3.6 V	1.7 V	Selectable Scale			I2C, SPI	85 °C	-40 °C	16 b	Z	Y	X	16-WFQFN Exposed Pad	16-QFN (3x3)	Hall Effect	Surface Mount	39 mT
