MS135-20F-NS

Active

Masach Tech Ltd.

RF SHIELD 0.531"X0.531" SOLDER

Search across all available documentation for this part.

Active

Masach Tech Ltd.

RF SHIELD 0.531"X0.531" SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

RF SHIELD 0.531"X0.531" SOLDER

Part	Type	Ventilation	Width - Overall [x]	Width - Overall [x]	Height - Overall [z]	Height - Overall [z]	Length - Overall [x]	Length - Overall [x]	Mounting Type	Length - Overall	Width - Overall [y]	Width - Overall [y]	Height - Overall
Masach Tech Ltd. MS135-20S	Shield, 1-Piece	Non-Vented	13.5 mm	0.531 "	5 mm	0.197 in	0.531 "	13.5 mm	Solder
Masach Tech Ltd. MS135-20C	Cover	Non-Vented				0.118 in	0.555 "		Snap Fit	14.1 mm	14.1 mm	0.555 "	3 mm
Masach Tech Ltd. MS135-20S-NS	Shield, 1-Piece	Non-Vented	13.5 mm	0.531 "	5 mm	0.197 in	0.531 "	13.5 mm	Solder
Masach Tech Ltd. MS135-20F	Frame		13.5 mm	0.531 "	5 mm	0.197 in	0.531 "	13.5 mm	Solder
Masach Tech Ltd. MS135-20C-NS	Cover	Non-Vented				0.118 in	0.555 "		Snap Fit	14.1 mm	14.1 mm	0.555 "	3 mm
Masach Tech Ltd. MS135-20F-NS	Frame	Non-Vented	13.5 mm	0.531 "	5 mm	0.197 in	0.531 "	13.5 mm	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

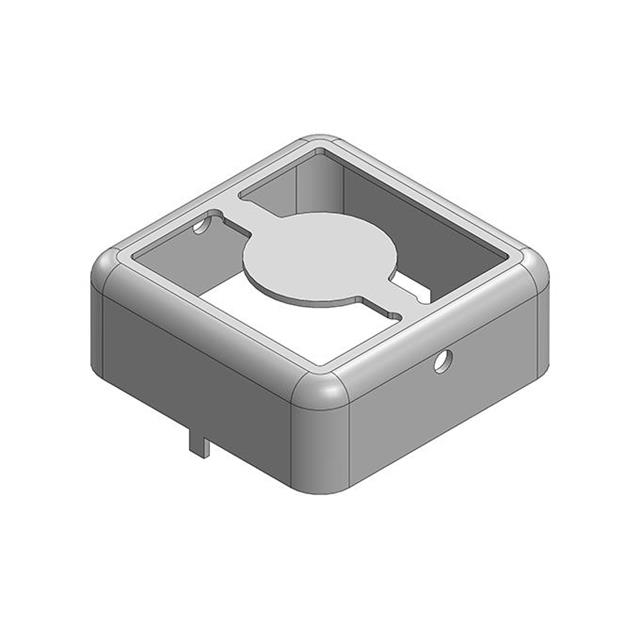

RF Shield Frame 0.531" (13.50mm) X 0.531" (13.50mm) Non-Vented Solder
