ERF8-070-05.0-L-DV-K-TR - ERF8-070-05.0-L-DV-K-TR

ERF8-070-05.0-L-DV-K-TR

Active
Samtec Inc.

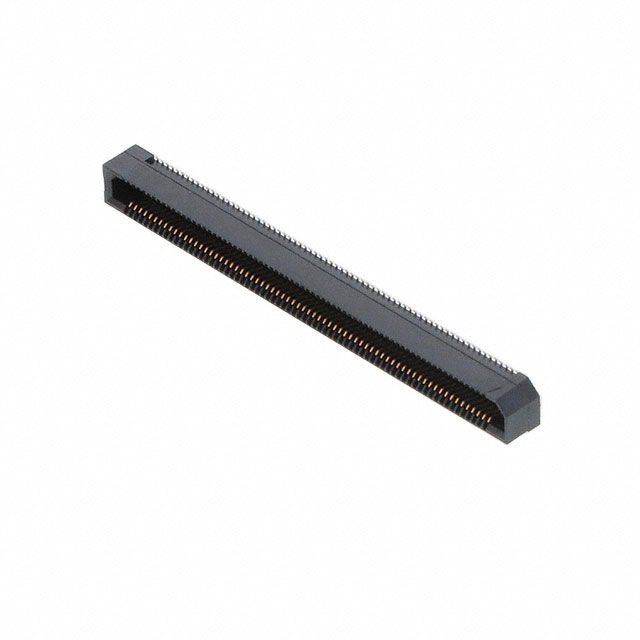

CONN SOCKET 140POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsERF8 Series Other Related Documents 03ERF8 Series Other Related Documents 01+1
ERF8-070-05.0-L-DV-K-TR - ERF8-070-05.0-L-DV-K-TR

ERF8-070-05.0-L-DV-K-TR

Active
Samtec Inc.

CONN SOCKET 140POS SMD GOLD

Deep-Dive with AI

DocumentsERF8 Series Other Related Documents 03ERF8 Series Other Related Documents 01+1

Technical Specifications

Parameters and characteristics for this part

SpecificationERF8-070-05.0-L-DV-K-TR
Connector TypeSocket, Outer Shroud Contacts
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
FeaturesPick and Place, Board Guide
Height Above Board0.21 in
Height Above Board5.33 mm
Mated Stacking Heights14 mm, 10 mm, 13 mm, 20 mm, 7 mm
Mounting TypeSurface Mount
Number of Positions140
Number of Rows2
Pitch [x]0.8 mm
Pitch [x]0.031 in

ERF8-070 Series

PartFeaturesContact Finish ThicknessContact Finish ThicknessNumber of PositionsNumber of RowsPitch [x]Pitch [x]Mated Stacking HeightsMounting TypeHeight Above Board [z]Height Above Board [z]Contact FinishConnector TypeHeight Above BoardHeight Above Board
Samtec Inc.
ERF8-070-07.0-S-DV-EGP-TR
Board Guide
0.76 Ám
30 Áin
140
2
0.8 mm
0.031 in
9 mm
12 mm
15 mm
16 mm
22 mm
Surface Mount
0.285 in
7.24 mm
Gold
Outer Shroud Contacts
Socket
Samtec Inc.
ERF8-070-03-S-D-RA-TR
Board Guide
Mounting Flange
0.76 Ám
30 Áin
140
2
0.8 mm
0.031 in
Surface Mount
Right Angle
Gold
Outer Shroud Contacts
Socket
6.25 mm
0.246 in
Samtec Inc.
ERF8-070-01-L-D-RA-EGP-TR
Board Guide
Mounting Flange
0.25 Ám
10 Áin
140
2
0.8 mm
0.031 in
Surface Mount
Right Angle
Gold
Outer Shroud Contacts
Socket
6.25 mm
0.246 in
Samtec Inc.
ERF8-070-05.0-L-DV-K-TR
Board Guide
Pick and Place
0.25 Ám
10 Áin
140
2
0.8 mm
0.031 in
7 mm
10 mm
13 mm
14 mm
20 mm
Surface Mount
Gold
Outer Shroud Contacts
Socket
5.33 mm
0.21 in
Samtec Inc.
ERF8-070-05.0-S-DV-L-K-TR
Board Guide
Latches
Pick and Place
0.76 Ám
30 Áin
140
2
0.8 mm
0.031 in
7 mm
10 mm
13 mm
14 mm
20 mm
Surface Mount
Gold
Outer Shroud Contacts
Socket
5.33 mm
0.21 in
Samtec Inc.
ERF8-070-07.0-L-DV-EGP-K-TR
Board Guide
Pick and Place
0.25 Ám
10 Áin
140
2
0.8 mm
0.031 in
9 mm
12 mm
15 mm
16 mm
22 mm
Surface Mount
0.285 in
7.24 mm
Gold
Outer Shroud Contacts
Socket
Samtec Inc.
ERF8-070-03-L-D-RA-TR
Board Guide
Mounting Flange
0.25 Ám
10 Áin
140
2
0.8 mm
0.031 in
Surface Mount
Right Angle
Gold
Outer Shroud Contacts
Socket
6.25 mm
0.246 in
Samtec Inc.
ERF8-070-01-L-D-EM2-TR
0.25 Ám
10 Áin
140
2
0.8 mm
0.031 in
Board Edge
Straddle Mount
Gold
Outer Shroud Contacts
Socket
Samtec Inc.
ERF8-070-07.0-S-DV-K-TR
Board Guide
Pick and Place
0.76 Ám
30 Áin
140
2
0.8 mm
0.031 in
9 mm
12 mm
15 mm
16 mm
22 mm
Surface Mount
0.285 in
7.24 mm
Gold
Outer Shroud Contacts
Socket
Samtec Inc.
ERF8-070-05.0-L-DV-L-K-TR
Board Guide
Latches
Pick and Place
0.25 Ám
10 Áin
140
2
0.8 mm
0.031 in
7 mm
10 mm
13 mm
14 mm
20 mm
Surface Mount
Gold
Outer Shroud Contacts
Socket
5.33 mm
0.21 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 7.85
10$ 7.17
25$ 6.70
50$ 6.61
100$ 5.78
Tape & Reel (TR) 375$ 5.78
750$ 5.03
1125$ 4.97

Description

General part information

ERF8-070 Series

140 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
