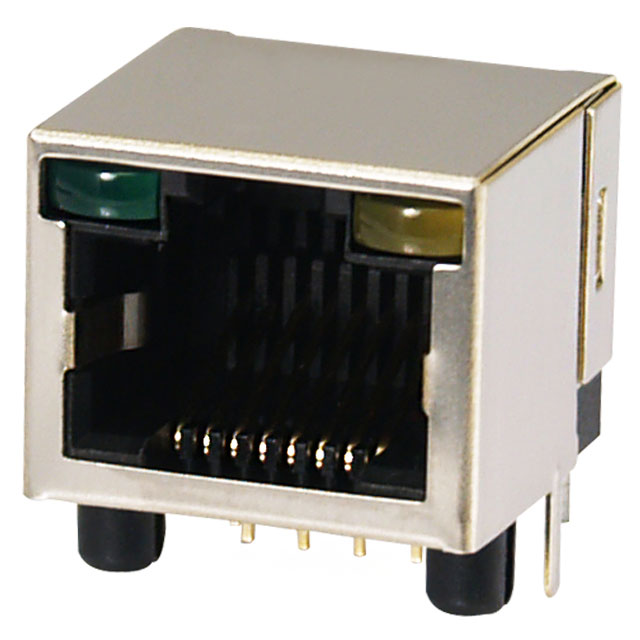

GWLX-S-88-G/Y
ActiveKycon, Inc.
MODJACK LOW/PROF RT< 8P8C SHIELD
Deep-Dive with AI
Search across all available documentation for this part.
GWLX-S-88-G/Y
ActiveKycon, Inc.
MODJACK LOW/PROF RT< 8P8C SHIELD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GWLX-S-88-G/Y |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic |
| LED Color | Yellow, Green |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 90 ° |
| Shielding | Shielded |
| Tab Direction | Up |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 200 | $ 1.64 | |
Description
General part information
GWLX-S-88-G/Y
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded
