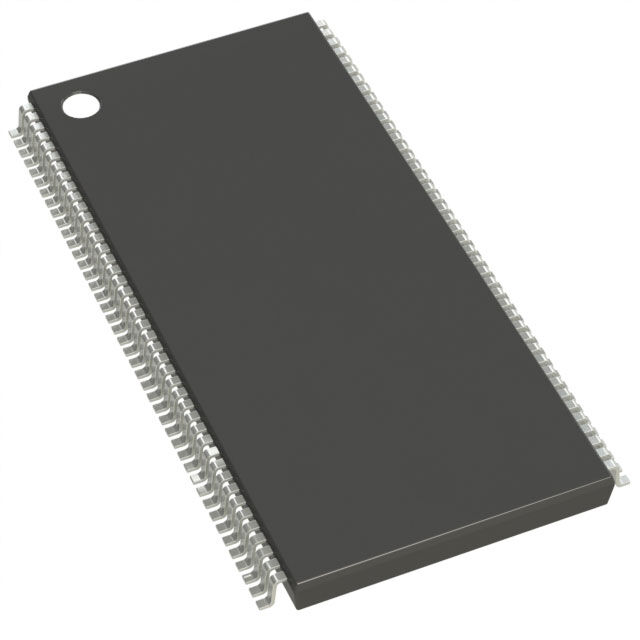

IS42S32200C1-55T

Obsolete

ISSI, Integrated Silicon Solution Inc

IC DRAM 64MBIT PAR 86TSOP II

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IS42S32200C1-55T

Obsolete

ISSI, Integrated Silicon Solution Inc

IC DRAM 64MBIT PAR 86TSOP II

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

IS42S32200 Series

SDRAM Memory IC 64Mbit Parallel 183 MHz 5 ns 86-TSOP II

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IS42S32200C1-55T	IS42S32200 Series

Access Time	5 ns	5 - 5.5 ns
Clock Frequency	183 MHz	143 - 200 MHz
Memory Format	DRAM	DRAM
Memory Interface	Parallel	Parallel, LVTTL
Memory Organization	2M x 32	2M x 32
Memory Size	64 Gbit	64 Gbit
Memory Type	Volatile	Volatile
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	70 °C	70 - 85 °C
Operating Temperature [Min]	0 °C	-40 - 0 °C
Package / Case	86-TFSOP	86-TFSOP, 90-TFBGA, 90-LFBGA
Package / Case [custom]	0.4 in	0.4 in
Supplier Device Package	86-TSOP II	86-TSOP II, 90-TFBGA (8x13), 90-BGA
Supplier Device Package	-	13
Supplier Device Package	-	8
Technology	SDRAM	SDRAM
Voltage - Supply [Max]	3.45 V	3.45 - 3.6 V
Voltage - Supply [Min]	3.15 V	3 - 3.15 V

IS42S32200 Series

IC DRAM 64MBIT PAR 86TSOP II

Part	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Memory Interface	Technology	Access Time	Clock Frequency	Memory Type	Memory Organization	Package / Case	Package / Case [custom]	Memory Size	Memory Format	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package [x]	Supplier Device Package [y]
ISSI, Integrated Silicon Solution Inc IS42S32200L-7TLI-TR	Surface Mount	3.6 V	3 V	86-TSOP II	Parallel	SDRAM	5.4 ns	143 MHz	Volatile	2M x 32	86-TFSOP	0.4 in	64 Gbit	DRAM	85 °C	-40 °C
ISSI, Integrated Silicon Solution Inc IS42S32200E-7BL-TR	Surface Mount	3.6 V	3 V	90-TFBGA (8x13)	Parallel	SDRAM	5.5 ns	143 MHz	Volatile	2M x 32	90-TFBGA		64 Gbit	DRAM	70 °C	0 °C
ISSI, Integrated Silicon Solution Inc IS42S32200C1-7T	Surface Mount	3.45 V	3.15 V	86-TSOP II	Parallel	SDRAM	5.5 ns	143 MHz	Volatile	2M x 32	86-TFSOP	0.4 in	64 Gbit	DRAM	70 °C	0 °C
ISSI, Integrated Silicon Solution Inc IS42S32200C1-7TLI	Surface Mount	3.45 V	3.15 V	86-TSOP II	Parallel	SDRAM	5.5 ns	143 MHz	Volatile	2M x 32	86-TFSOP	0.4 in	64 Gbit	DRAM	85 °C	-40 °C
ISSI, Integrated Silicon Solution Inc IS42S32200L-6BL	Surface Mount	3.6 V	3 V	90-TFBGA (8x13)	Parallel	SDRAM	5.4 ns	166 MHz	Volatile	2M x 32	90-TFBGA		64 Gbit	DRAM	70 °C	0 °C
ISSI, Integrated Silicon Solution Inc IS42S32200E-7BLI	Surface Mount	3.6 V	3 V	90-TFBGA (8x13)	Parallel	SDRAM	5.5 ns	143 MHz	Volatile	2M x 32	90-TFBGA		64 Gbit	DRAM	85 °C	-40 °C
ISSI, Integrated Silicon Solution Inc IS42S32200C1-7BI	Surface Mount	3.45 V	3.15 V	90-BGA	Parallel	SDRAM	5.5 ns	143 MHz	Volatile	2M x 32	90-LFBGA		64 Gbit	DRAM	85 °C	-40 °C	13	8
ISSI, Integrated Silicon Solution Inc IS42S32200E-6TL	Surface Mount	3.6 V	3 V	86-TSOP II	Parallel	SDRAM	5.5 ns	166 MHz	Volatile	2M x 32	86-TFSOP	0.4 in	64 Gbit	DRAM	70 °C	0 °C
ISSI, Integrated Silicon Solution Inc IS42S32200E-5TL	Surface Mount	3.45 V	3.15 V	86-TSOP II	Parallel	SDRAM	5 ns	200 MHz	Volatile	2M x 32	86-TFSOP	0.4 in	64 Gbit	DRAM	70 °C	0 °C
ISSI, Integrated Silicon Solution Inc IS42S32200C1-7BLI	Surface Mount	3.45 V	3.15 V	90-BGA	Parallel	SDRAM	5.5 ns	143 MHz	Volatile	2M x 32	90-LFBGA		64 Gbit	DRAM	85 °C	-40 °C	13	8
