Description
General part information

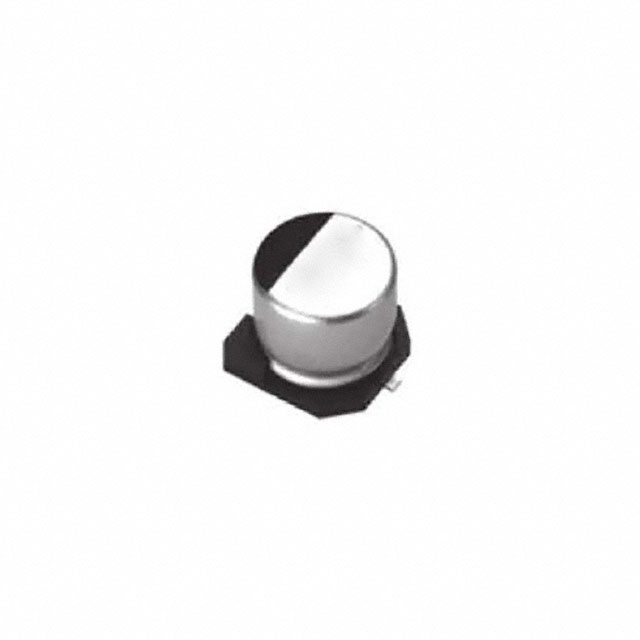

VUJ101M1ETR-0810S
Aluminum Electrolytic Capacitors
Technical Specifications
Parameters and characteristics for this part
| Specification | VUJ101M1ETR-0810S |
|---|---|
| Applications | General Purpose |
| Capacitance | 100 µF |
| Height - Seated (Max) | 0.413 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ripple Current | 110 mA |
| Size / Dimension Diameter | 0.315 in |
| Surface Mount Land Length | 0.327 in |
| Surface Mount Land Width | 0.327 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
