Description
General part information
3596

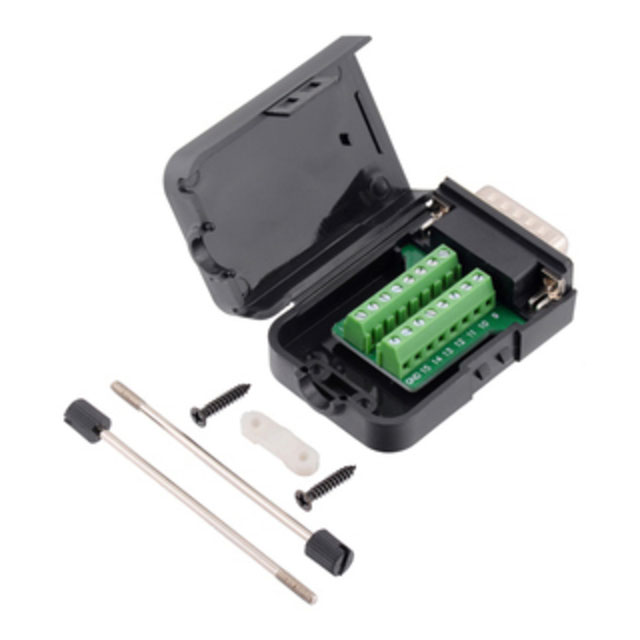

15 Position D-Sub Plug, Male Pins Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 3596 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Male Pins, Plug |
| Current Rating | 5 A |
| Flange Feature | Shell (Unthreaded), Housing |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Material, Finish | Plastic |
| Termination | Screw |
| Voltage Rating | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
