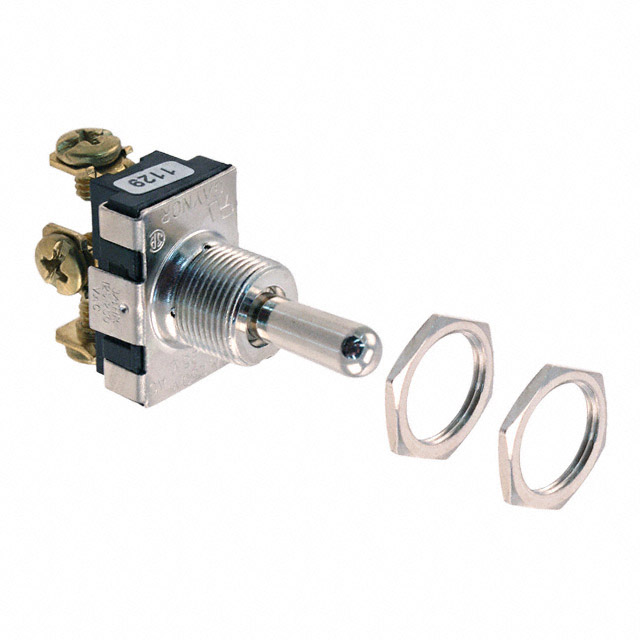

7201B

Active

ELECTROSWITCH

TOGGLE SWITCHES FULL SIZE POWER TOGGLE SWITCH 20A - 125VAC 3/4HP SPDT ON-NONE-ON, SCREW, SLOW MAKE/SLOW BREAK BUTT CONTACTS, UL & CSA CERTIFIED

Search across all available documentation for this part.

Active

ELECTROSWITCH

TOGGLE SWITCHES FULL SIZE POWER TOGGLE SWITCH 20A - 125VAC 3/4HP SPDT ON-NONE-ON, SCREW, SLOW MAKE/SLOW BREAK BUTT CONTACTS, UL & CSA CERTIFIED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Precision Potentiometers

Technical documentation and resources

Specification	7201B	7200 Series

Actuator Length [x]	14.27 mm	14.27 mm
Actuator Type	Standard Round	Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	SPDT	SPDT
Current Rating (Amps)	20 A	20 A
Electrical Life	10000 Cycles	10000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-10 °C	-10 °C
Switch Function	On-On	On-On, Mom-Off-Mom
Termination Style	Screw Terminal	Screw Terminal, Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V	125 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Actuator Type	Electrical Life	Termination Style	Illumination	Bushing Thread	Actuator Length [x]	Current Rating (Amps)	Circuit	Switch Function
ELECTROSWITCH 7201B	-10 °C	65 °C	125 V	Standard Round	10000 Cycles	Screw Terminal	Non-Illuminated	15/32-32	14.27 mm	20 A	SPDT	On-On
ELECTROSWITCH 7262C	-10 °C	65 °C	125 V	Standard Round	10000 Cycles	Quick Connect - 0.250" (6.3mm)	Non-Illuminated	15/32-32	14.27 mm	20 A	SPDT	Mom-Off-Mom
