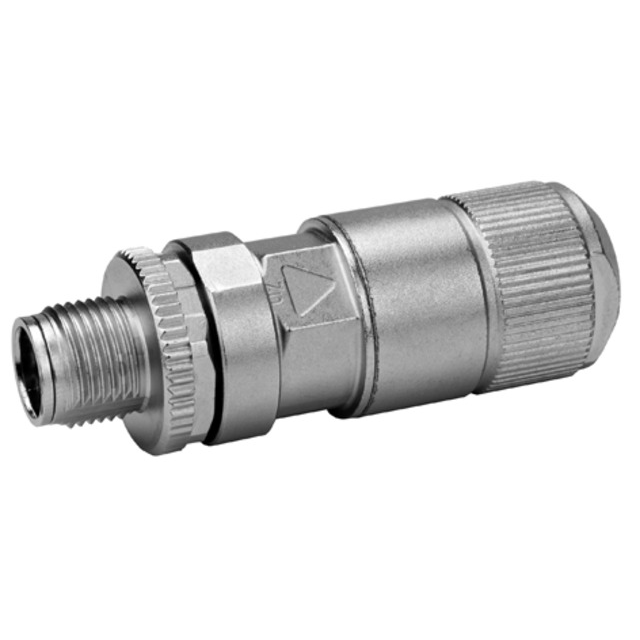

M12X-CP IDC FIELD C6A D5.5-9

Search across all available documentation for this part.

Active

Telegartner Inc

M12X-CP IDC FIELD C6A D5.5-9

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100007499	J80026 Series

Applications	Industrial	Industrial
Backshell Material, Plating	Brass and Zinc Die Cast, Nickel	Nickel, Brass, Brass and Zinc Die Cast
Cable Opening	-	8 - 9 mm
Cable Opening [Max] [custom]	9 mm	9 mm
Cable Opening [Max] [custom]	0.354 in	0.315 - 0.354 in
Cable Opening [Min] [custom]	0.217 in	0.197 - 0.217 in
Cable Opening [Min] [custom]	5.5 mm	5 - 5.5 mm
Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	31.5 µin	31.5 µin
Contact Finish Thickness - Mating	0.8 µm	0.8 µm
Contact Material	Brass	Brass
Current Rating (Amps)	0.5 A	0.5 - 4 A
Features	Backshell	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0	UL94 V-0, UL94 HB
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	8	4 - 8
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	X	D, X
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Brass and Zinc Die Cast	Brass, Brass and Zinc Die Cast
Shell Size - Insert	M12-8	M12-4, M12-8
Shielding	Shielded	Unshielded, Shielded
Termination	IDC	IDC, Screw
Voltage Rating	50 VAC, 60 VDC	50 - 250 VAC

CU-CN M12D-CP IDC FIELD C5 D5-9

Part	Voltage Rating	Orientation	Shell Size - Insert	Primary Material	Mounting Type	Number of Positions	Connector Type	Contact Finish - Mating	Shell Finish	Color	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Material Flammability Rating	Backshell Material, Plating	Contact Material	Current Rating (Amps)	Ingress Protection	Features	Termination	Shell Material	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Cable Opening [Max] [custom]
Telegartner Inc 100007501	250 VAC	D	M12-4	Metal	Free Hanging (In-Line)	4	Male Pins, Receptacle	Gold	Nickel	Silver	Unshielded	85 °C	-40 °C	Industrial	5 mm	0.197 in	0.354 in	9 mm	UL94 V-0	Brass, Nickel	Brass	4 A	IP67 - Dust Tight, Waterproof	Backshell	IDC	Brass	Nylon, Polyamide (PA)
Telegartner Inc 100007499	50 VAC, 60 VDC	X	M12-8	Metal	Free Hanging (In-Line)	8	Male Pins, Receptacle	Gold	Nickel	Silver	Shielded	85 °C	-40 °C	Industrial	5.5 mm	0.217 in	0.354 in		UL94 V-0	Brass and Zinc Die Cast, Nickel	Brass	0.5 A	IP67 - Dust Tight, Waterproof	Backshell	IDC	Brass and Zinc Die Cast	Nylon, Polyamide (PA)	31.5 µin	0.8 µm	9 mm
Telegartner Inc 100007500	250 VDC	D	M12-4	Metal	Free Hanging (In-Line)	4	Male Pins, Receptacle	Gold	Nickel	Silver	Shielded	85 °C	-40 °C	Industrial	5 mm	0.197 in	0.315 in	8 mm	UL94 HB	Brass and Zinc Die Cast, Nickel	Brass	4 A	IP67 - Dust Tight, Waterproof	Backshell	Screw	Brass and Zinc Die Cast	Nylon, Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (Data) Position Circular Connector Receptacle, Male Pins IDC
