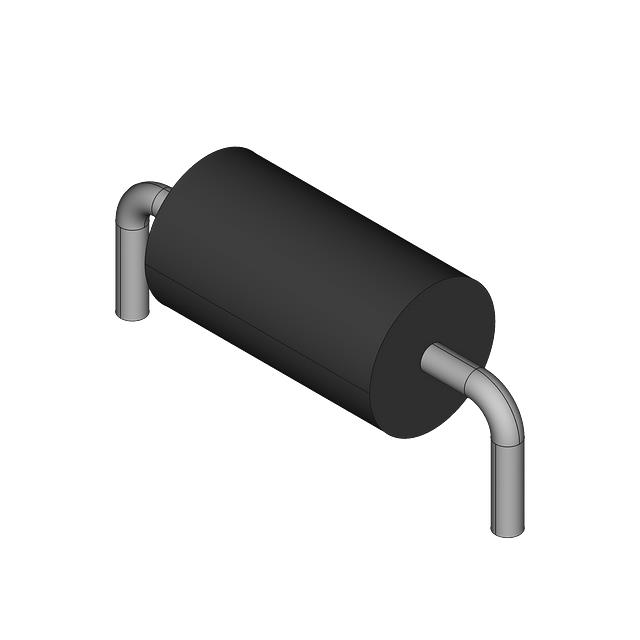

1.5KE36AG

Active

ON Semiconductor

TVS DIODE 30.8VWM 49.9VC AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

1.5KE36AG

Active

ON Semiconductor

TVS DIODE 30.8VWM 49.9VC AXIAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1150	$ 0.26

Description

General part information

1.5KE Series

49.9V Clamp 30A Ipp Tvs Diode Through Hole Axial

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.5KE36AG	1.5KE Series

	-	-
Applications	General Purpose	General Purpose
Bidirectional Channels	-	1
Current - Peak Pulse (10/1000µs)	30 A	4.8 - 143 A
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	175 ░C	175 ░C
Operating Temperature [Min]	-65 °C	-65 - -50 °C
Package / Case	DO-201AD, Axial	Axial, DO-27, DO-201AA, DO-201AD, Axial
Power - Peak Pulse	1.5 kW	1.5 kW
Power - Peak Pulse	1500 W	1500 W
Power Line Protection	False	False
Supplier Device Package	Axial	DO-201, Axial
Type	Zener	Zener
Unidirectional Channels [custom]	1	1
Voltage - Breakdown (Min) [Min]	34.2 V	6.45 - 209 V
Voltage - Clamping (Max) @ Ipp	-	21.2 - 137 V
Voltage - Clamping (Max) @ Ipp [Max]	49.9 V	10.5 - 328 V
Voltage - Reverse Standoff (Typ)	30.8 V	5.8 - 171 V

1.5KE Series

TRANS VOLTAGE SUPPRESSOR DIODE,

Part	Voltage - Breakdown (Min) [Min]	Unidirectional Channels [custom]	Type	Voltage - Clamping (Max) @ Ipp	Supplier Device Package	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Peak Pulse (10/1000µs)	Package / Case	Applications	Power - Peak Pulse	Power - Peak Pulse	Voltage - Reverse Standoff (Typ)	Voltage - Clamping (Max) @ Ipp [Max]
ON Semiconductor 1.5KE100A	95 V	1	Zener	137 V	DO-201	Through Hole	-50 °C	175 ░C	11.4 A	Axial, DO-201AA, DO-27	General Purpose	1.5 kW	1500 W	85.5 V
ON Semiconductor 1.5KE100ARL4G	95 V	1	Zener	137 V	Axial	Through Hole	-65 °C	175 ░C	11 A	DO-201AD, Axial	General Purpose	1.5 kW	1500 W	85.5 V
ON Semiconductor 1.5KE62ARL4	58.9 V	1	Zener		Axial	Through Hole	-65 °C	175 ░C	17.7 A	DO-201AD, Axial	General Purpose	1.5 kW	1500 W	53 V	85 V
ON Semiconductor 1.5KE8.2ARL4	7.79 V	1	Zener		Axial	Through Hole	-65 °C	175 ░C	124 A	DO-201AD, Axial	General Purpose	1.5 kW	1500 W	7.02 V	12.1 V
ON Semiconductor 1.5KE12ARL4G	11.4 V	1	Zener		Axial	Through Hole	-65 °C	175 ░C	90 A	DO-201AD, Axial	General Purpose	1.5 kW	1500 W	10.2 V	16.7 V
ON Semiconductor 1.5KE12ARL4	11.4 V	1	Zener		Axial	Through Hole	-65 °C	175 ░C	90 A	DO-201AD, Axial	General Purpose	1.5 kW	1500 W	10.2 V	16.7 V
ON Semiconductor 1.5KE8.2ARL4G	7.79 V	1	Zener		Axial	Through Hole	-65 °C	175 ░C	124 A	DO-201AD, Axial	General Purpose	1.5 kW	1500 W	7.02 V	12.1 V
ON Semiconductor 1.5KE11ARL4	10.5 V	1	Zener		Axial	Through Hole	-65 °C	175 ░C	96 A	DO-201AD, Axial	General Purpose	1.5 kW	1500 W	9.4 V	15.6 V
ON Semiconductor 1.5KE62A	58.9 V	1	Zener		Axial	Through Hole	-65 °C	175 ░C	17.7 A	DO-201AD, Axial	General Purpose	1.5 kW	1500 W	53 V	85 V
ON Semiconductor 1.5KE51ARL4	48.5 V	1	Zener		Axial	Through Hole	-65 °C	175 ░C	21.4 A	DO-201AD, Axial	General Purpose	1.5 kW	1500 W	43.6 V	70.1 V
