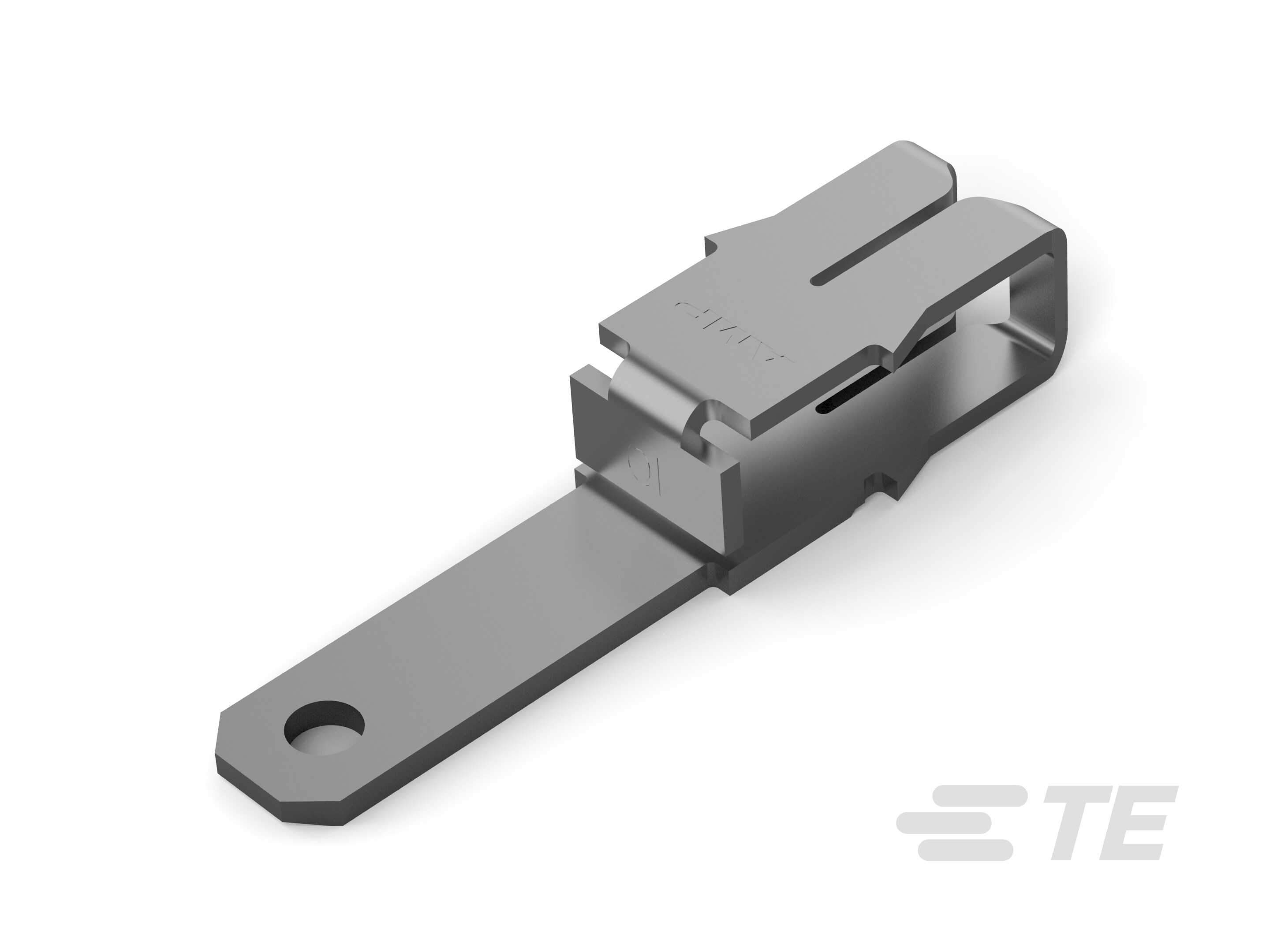

63746-1
ActiveTE Connectivity AMP Connectors
TERMINALS MAG-MATE 110 F TAB 27-23 TPBR
63746-1
ActiveTE Connectivity AMP Connectors
TERMINALS MAG-MATE 110 F TAB 27-23 TPBR
Description
General part information
MAG-MATE 300 Series
Tab, 2.79 mm [.11 in] Tab Width, 24 – 22 AWG Aluminum Wire, .51 – .64 mm Aluminum Wire, .36 – .57 mm Magnet Wire, MAG-MATE 300, Magnet Wire Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | 63746-1 |
|---|---|
| Features | QC .110 |
| Size | 2 |
| Style | 300 |
| Terminal Type | Box IDC |
| Termination | Quick Connect |
| Wire Gauge (AWG) (Max) | 27 AWG |
| Wire Gauge (AWG) (Min) | 23 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
