1332125
ActivePhoenix Contact

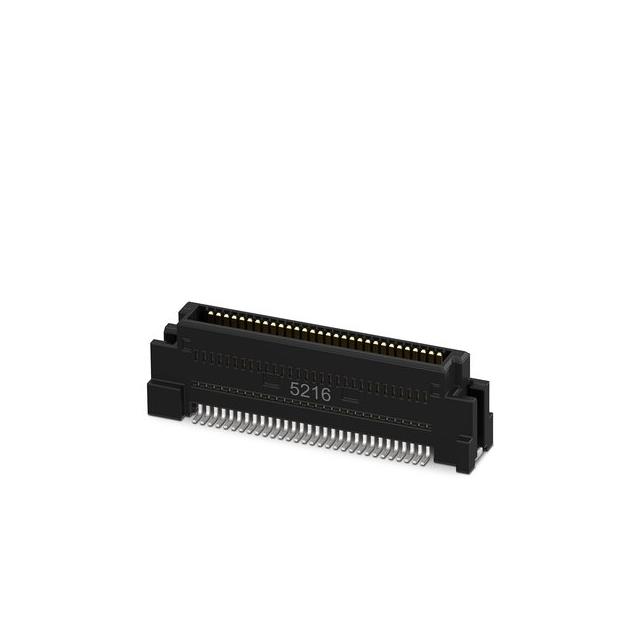

CONN MALE HDR 6.35MM 40POS SMD
1332125
ActivePhoenix Contact
CONN MALE HDR 6.35MM 40POS SMD
Description
General part information
1332125
40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | 1332125 |
|---|---|
| Connector Type | Center Strip Contacts, Receptacle |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board | 0.394 in |
| Mated Stacking Height Options | 16mm, 15mm, 12mm |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch | 0.025 in |
