818-AG11D-ES
ObsoleteTE Connectivity AMP Connectors

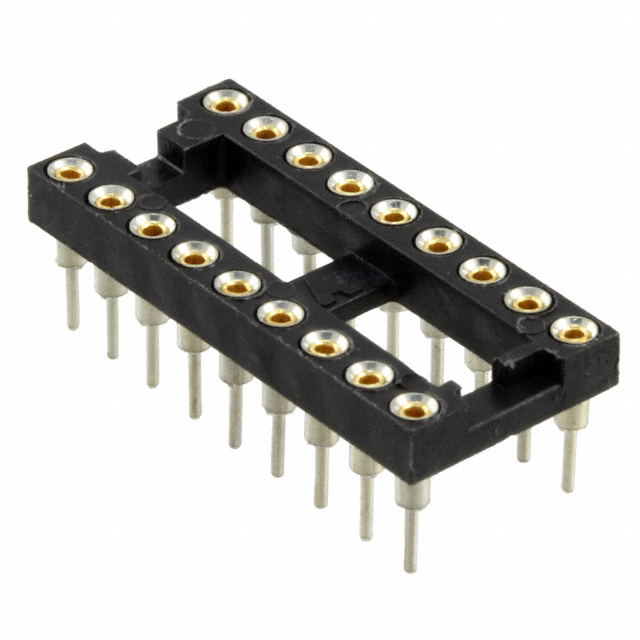

CONN IC DIP SOCKET 18POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
818-AG11D-ES
ObsoleteTE Connectivity AMP Connectors
CONN IC DIP SOCKET 18POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 818-AG11D-ES | 818 Series |
|---|---|---|
| Contact Finish - Mating | Gold | Gold, Tin-Lead |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | - | 2.03 µm |
| Contact Finish Thickness - Mating | - | 80 µin |
| Contact Material - Mating | Copper Alloy | Copper Alloy |
| Contact Material - Post [custom] | Copper Alloy | Copper Alloy |
| Contact Resistance | 10 mOhm | 10 mOhm |
| Current Rating (Amps) | 3 A | 3 A |
| Features | Open Frame | Open Frame |
| Housing Material | Polyester | Polyester |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions or Pins (Grid) | 18 | 18 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Pitch - Post | 2.54 mm | 2.54 mm |
| Pitch - Post | 0.1 in | 0.1 in |
| Termination | Solder | Solder |
| Termination Post Length | 3.18 mm | 3.18 mm |
| Termination Post Length | 0.125 in | 0.125 in |
| Type | 0.3 " | 0.3 " |
| Type | 7.62 mm | 7.62 mm |
| Type | DIP | DIP |
818 Series
CONN IC DIP SOCKET 18POS GOLD
| Part | Number of Positions or Pins (Grid) | Features | Contact Resistance | Pitch - Post | Pitch - Post | Contact Material - Post [custom] | Pitch - Mating | Pitch - Mating | Housing Material | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Contact Finish - Mating | Termination Post Length | Termination Post Length | Mounting Type | Contact Finish - Post | Type | Type | Type | Termination | Contact Material - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 818-AG11D-ES | 18 | Open Frame | 10 mOhm | 2.54 mm | 0.1 in | Copper Alloy | 0.1 in | 2.54 mm | Polyester | UL94 V-0 | 105 ░C | -55 °C | 3 A | Gold | 3.18 mm | 0.125 in | Through Hole | Tin-Lead | 0.3 " | 7.62 mm | DIP | Solder | Copper Alloy | ||
TE Connectivity AMP Connectors 818-AG12D | 18 | Open Frame | 10 mOhm | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Polyester | UL94 V-0 | 105 ░C | -55 °C | 3 A | Tin-Lead | 3.18 mm | 0.125 in | Through Hole | 0.3 " | 7.62 mm | DIP | Solder | Copper Alloy | 2.03 µm | 80 µin | ||
TE Connectivity AMP Connectors 818-AG10D | 18 | Open Frame | 10 mOhm | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Polyester | UL94 V-0 | 105 ░C | -55 °C | 3 A | Gold | 3.18 mm | 0.125 in | Through Hole | 0.3 " | 7.62 mm | DIP | Solder | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
818 Series
18 (2 x 9) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
