RES2-010M-D1MU-LP-C
ActiveLoadstar Sensors

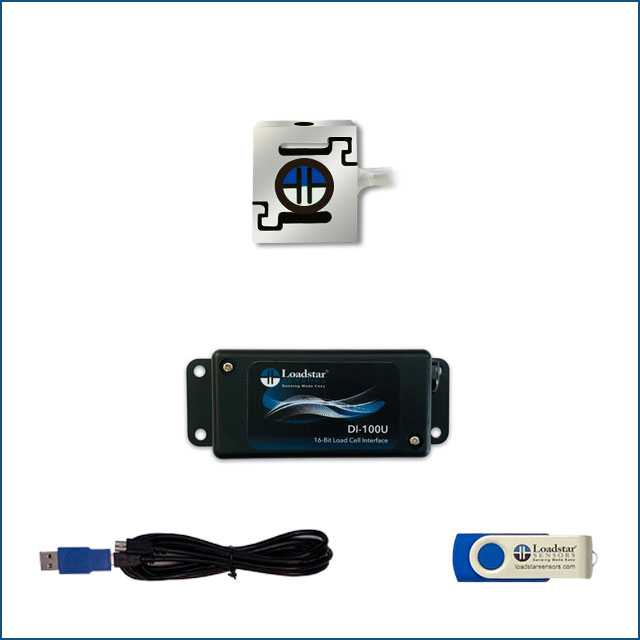

10 KGF S-BEAM JR USB KIT COMP
RES2-010M-D1MU-LP-C
ActiveLoadstar Sensors
10 KGF S-BEAM JR USB KIT COMP
Description
General part information
RES2-010M-D1MU-LP-C
10 KGF S-BEAM JR USB KIT COMP
Technical Specifications
Parameters and characteristics for this part
| Specification | RES2-010M-D1MU-LP-C |
|---|---|
| Accuracy | 0.5 % RH |
| Actuator Size | M4 |
| Actuator Style | Internal Thread |
| Actuator Type | S-Beam |
| Compensated Temperature (Max) | 40 °C |
| Compensated Temperature (Min) | -10 °C |
| Includes | USB Interface, Software, Sensor, Calibration w/Certificate |
| Operating Force | 10 kgf |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Output | USB |
| Sensor Type | Load Cell |
| Voltage - Supply (Maximum) | 10 V |
| Voltage - Supply (Minimum) | 5 V |
