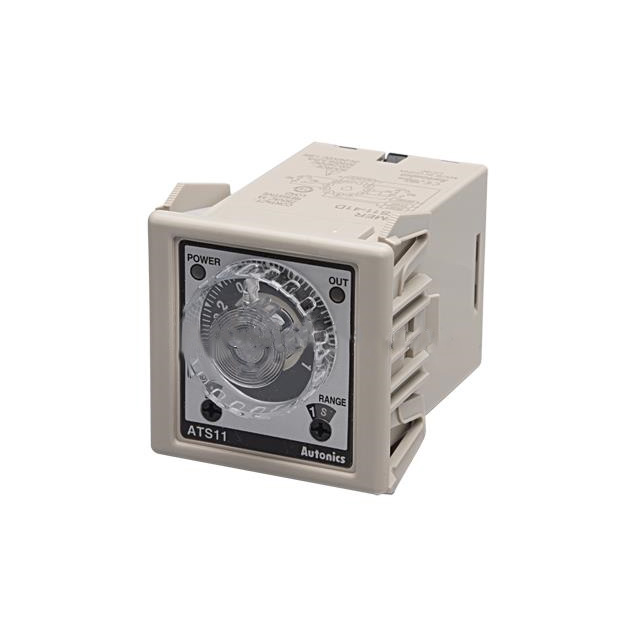

ATS11-43D
ActiveAUTONICS
RELAY TIME DELAY 30HR 3A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ATS11-43D
ActiveAUTONICS
RELAY TIME DELAY 30HR 3A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ATS11-43D |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 250 VAC, 3 A |
| Delay Time [Max] | 30 Hrs |
| Delay Time [Min] | 0.3 Sec |
| Function | Programmable (Multi-Function) |
| Termination Style | Plug In, 11 Pin (Octal) |
| Timing Adjustment Method | Hand Dial |
| Voltage - Supply [Max] | 240 VDC, 240 VAC |
| Voltage - Supply [Min] | 100 VAC, 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 32.00 | |
Description
General part information
ATS11-43D
Programmable (Multi-Function) Time Delay Relay DPDT (2 Form C) 0.3 Sec ~ 30 Hrs Delay 3A @ 250VAC Panel Mount
