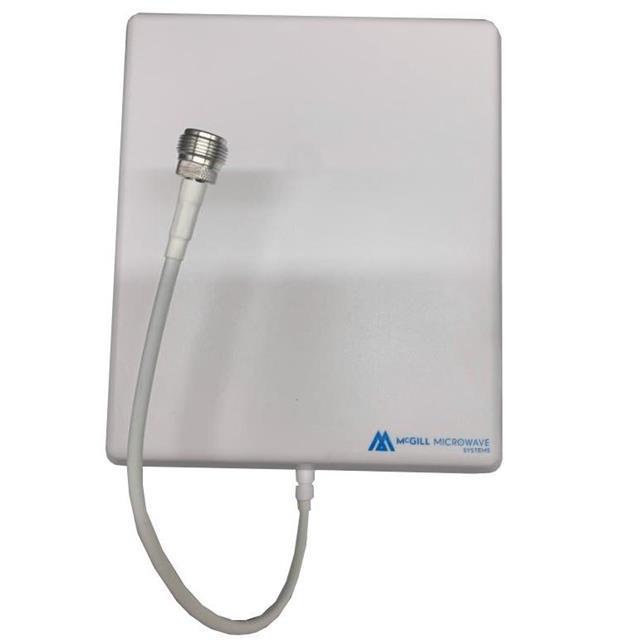

MM-ANT-FP-2.4G
ActiveMcGill Microwave Systems
RFID ANTENNA 210X180X43MM
MM-ANT-FP-2.4G
ActiveMcGill Microwave Systems
RFID ANTENNA 210X180X43MM
Description
General part information
MM-ANT-FP-2.4G
RFID Antenna 680MHz ~ 960MHz, 1.71GHz ~ 2.7GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | MM-ANT-FP-2.4G |
|---|---|
| Antenna Type | Panel |
| Applications | General Purpose |
| Features | 9.4dBi Gain Max, 7dBi Gain Max |
| Frequency Range 1 (Max) | 960 MHz |
| Frequency Range 1 (Min) | 680 MHz |
| Frequency Range 2 (Max) | 2.7 GHz |
| Frequency Range 2 (Min) | 1.71 GHz |
| Number of Bands | 1 |
| Power - Max | 50 VA |
| RF Family/Standard | General ISM |
| Size / Dimension Height | 43 mm |
| Size / Dimension Length | 210 mm |
| Size / Dimension Width | 180 mm |
| Termination | N Type Female |
| VSWR | 1.5 |
