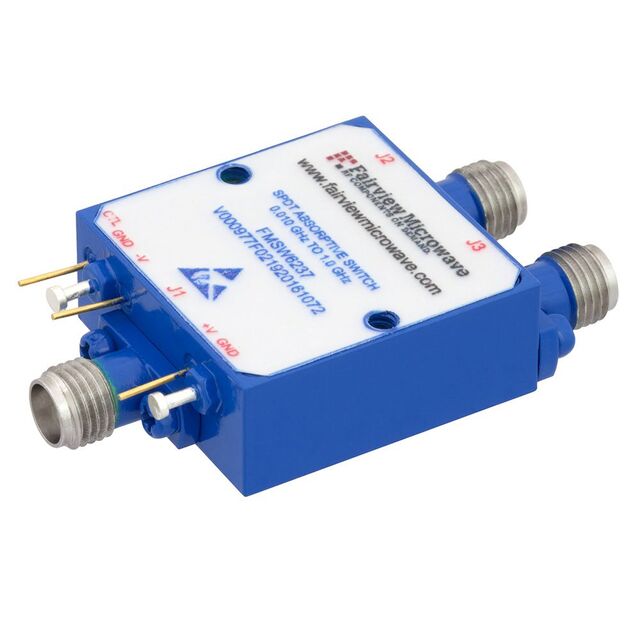

FMSW6237
ObsoleteFairview Microwave
PIN DIODE SWITCH SMA SPDT 1GHZ
FMSW6237
ObsoleteFairview Microwave
PIN DIODE SWITCH SMA SPDT 1GHZ
Description
General part information
FMSW6237
RF Switch IC General Purpose SPDT 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | FMSW6237 |
|---|---|
| Circuit | SPDT |
| Frequency Range (Max) | 1 GHz |
| Frequency Range (Min) | 10 MHz |
| Impedance | 50 Ohm |
| Insertion Loss | 1.3 dB |
| Isolation | 80 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| RF Type | General Purpose |
| Test Frequency | 1 GHz |
| Topology | Absorptive |
| Voltage - Supply | 5 VDC, -15 V |
| Voltage - Supply | 5V, -15V |
