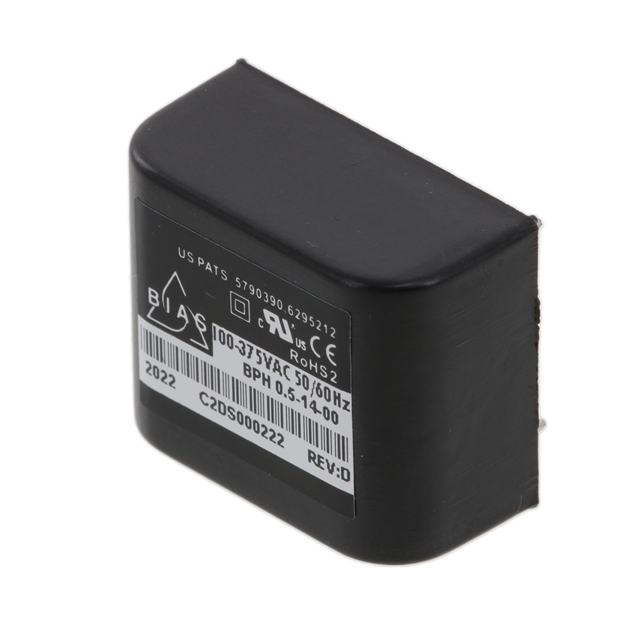

BPH-0.5-14-00

Active

Cita Technologies, LLC.

AC/DC CONVERTER 14V 1/2W

Search across all available documentation for this part.

Active

Cita Technologies, LLC.

AC/DC CONVERTER 14V 1/2W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 14V 1/2W

Part	Type	Voltage - Output 1	Number of Outputs	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Power (Watts)	Current - Output (Max) [Max]	Current - Output (Max)
Cita Technologies, LLC. BPH-0.5-14-00	Enclosed	14 V	1	ITE (Commercial)	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	100 VAC	375 VAC	70 %	CB, cURus	70 °C	-30 ░C	Through Hole	7-DIP Module
Cita Technologies, LLC. BPH-0.5-08-00	Enclosed	8 V	1	ITE (Commercial)	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	100 VAC	375 VAC	70 %	CB, cURus	70 °C	-30 ░C	Through Hole	7-DIP Module
Cita Technologies, LLC. BPH-0.5-08-50	Enclosed	8 V	2	ITE (Commercial)	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	100 VAC	375 VAC	70 %	CB, cURus	70 °C	-30 ░C	Through Hole	7-DIP Module	819 mW	63 mA
Cita Technologies, LLC. BPH-0.5-14-50	Enclosed	14 V	2	ITE (Commercial)	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	100 VAC	375 VAC	70 %	CB, cURus	70 °C	-30 ░C	Through Hole	7-DIP Module	572 mW		28 mA, 36 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.56

General part information

Enclosed AC DC Converters 1 Output 14V 100 ~ 375 VAC Input

Technical documentation and resources
