8456 060500

Active

Belden Inc.

CABLE 10COND 22AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 10COND 22AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	8456 060500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.264 in
Jacket (Insulation) Diameter [diameter]	6.71 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	10
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2576
Usage	Audio, Instrumentation, Control
Wire Gauge	22 AWG

Part	Usage	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Number of Conductors	Cable Type	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Jacket (Insulation) Material
Belden Inc. 8456 060500	Audio Control Instrumentation	Chrome	0.264 in	6.71 mm	500 '	152.4 m	10	Multi-Conductor	Poly-Vinyl Chloride (PVC)	7	30 AWG	22 AWG	Copper Tinned	-20 C	80 C	UL Style 2576	Poly-Vinyl Chloride (PVC)
Belden Inc. 8456 060U500	Audio Control Instrumentation	Chrome	0.264 in	6.71 mm	500 '	152.4 m	10	Multi-Conductor	Poly-Vinyl Chloride (PVC)	7	30 AWG	22 AWG	Copper Tinned	-20 C	80 C	UL Style 2576	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 3.04

General part information

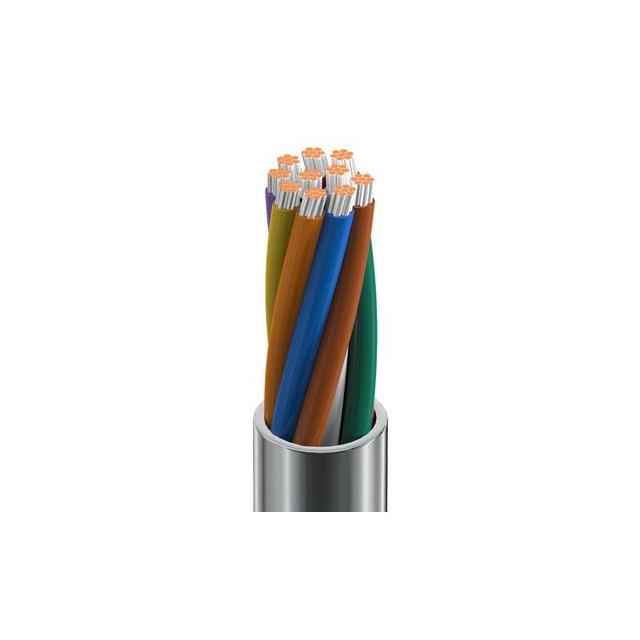

10 Conductor Multi-Conductor Cable Chrome 22 AWG 500.0' (152.4m)

Technical documentation and resources
