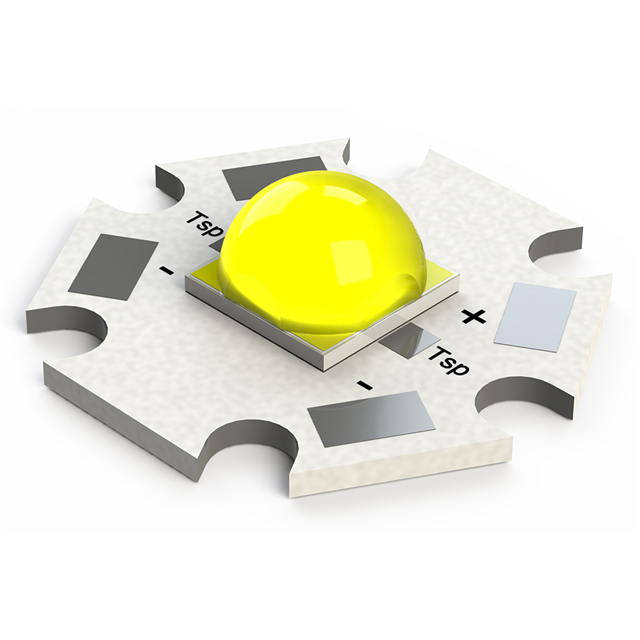

XHP70B-00-0000-0D0BP250E-SB01

Active

New Energy

LED MOD XLAMP WH STARBOARD 5000K

Search across all available documentation for this part.

Active

New Energy

LED MOD XLAMP WH STARBOARD 5000K

Technical Specifications

Parameters and characteristics for this part

Specification	XHP70B-00-0000-0D0BP250E-SB01

CCT (K)	5000 K
CCT (K)	5-Step MacAdam Ellipse
Color	Cool, White
Configuration	Starboard
CRI (Color Rendering Index)	70
Current - Test	1.05 A
Height [z]	4.4 mm
Lens Type	Domed
Lumens/Watt @ Current - Test	151 lm/W
Luminous Flux @ Current/Temperature	1898 lm
Luminous Flux @ Current/Temperature [Max]	1965 lm
Luminous Flux @ Current/Temperature [Min]	1830 lm
Size / Dimension [diameter]	19.89 mm
Temperature - Test	85 °C
Type	LED Module
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	12 V

LED MOD XLAMP WH STARBOARD 5000K

Part	Lens Type	Type	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature	Size / Dimension [diameter]	Viewing Angle	CRI (Color Rendering Index)	CCT (K)	CCT (K)	Configuration	Current - Test	Temperature - Test	Height [z]	Color
New Energy XHP70B-00-0000-0D0BP250E-SB01	Domed	LED Module	12 V	151 lm/W	1965 lm	1830 lm	1898 lm	19.89 mm	125 °	70	5000 K	5-Step MacAdam Ellipse	Starboard	1.05 A	85 °C	4.4 mm	Cool, White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 20.52

General part information

LED Lighting COBs Engines Modules LED Module Xlamp® XHP70 White, Cool Starboard
