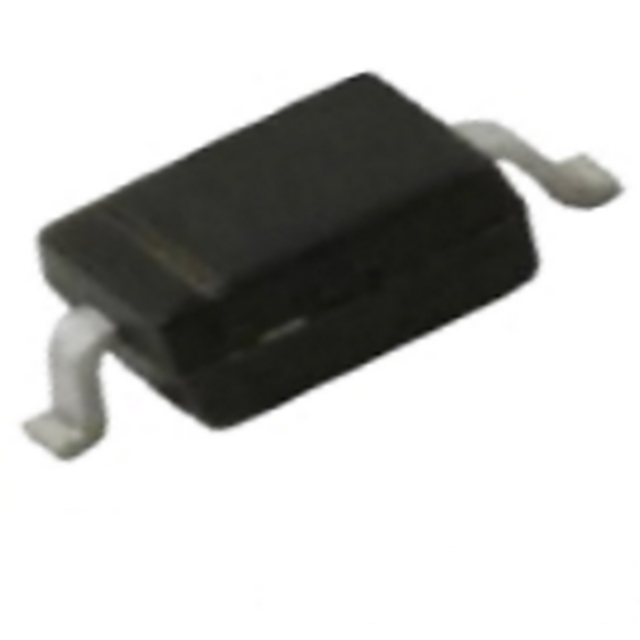

BZT52B15S
ActiveRectron USA
DIODE ZENER 15V 500MW SOD323
BZT52B15S
ActiveRectron USA
DIODE ZENER 15V 500MW SOD323
Description
General part information
BZT52B15S
Zener Diode 15 V 500 mW ±2% Surface Mount SOD-323
Technical Specifications
Parameters and characteristics for this part
| Specification | BZT52B15S |
|---|---|
| Current - Reverse Leakage | 100 nA |
| Impedance (Max) (Zzt) | 30 Ohms |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Package Name | SOD-323 |
| Power - Max | 0.5 W |
| Tolerance | 2 % |
| Voltage - Forward (Vf) (Max) | 900 mV |
| Voltage - Zener (Nom) (Vz) | 15 V |
