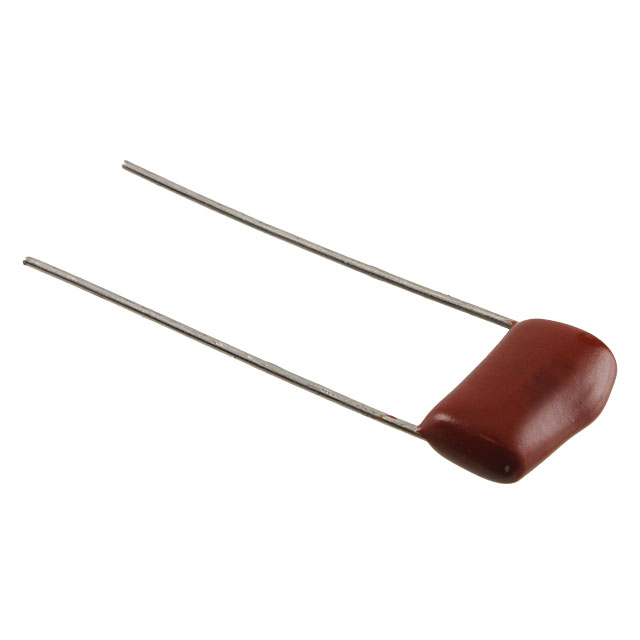

DME4S47K-F
ActiveCornell Dubilier Knowles
CAP FILM 0.047UF 10% 400VDC RAD
DME4S47K-F
ActiveCornell Dubilier Knowles
CAP FILM 0.047UF 10% 400VDC RAD
Description
General part information
DME4S47K-F
0.047 µF Film Capacitor 200V 400V Polyester, Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | DME4S47K-F |
|---|---|
| Applications | General Purpose |
| Capacitance | 47 nF |
| Dielectric Material | Polyester, Metallized |
| Height - Seated (Max) | 0.394 in |
| Lead Spacing | 0.394 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.492 in |
| Size / Dimension Width | 0.217 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 200 Vpk |
| Voltage Rating - DC | 400 V |
