Description
General part information
6XV18603PN15

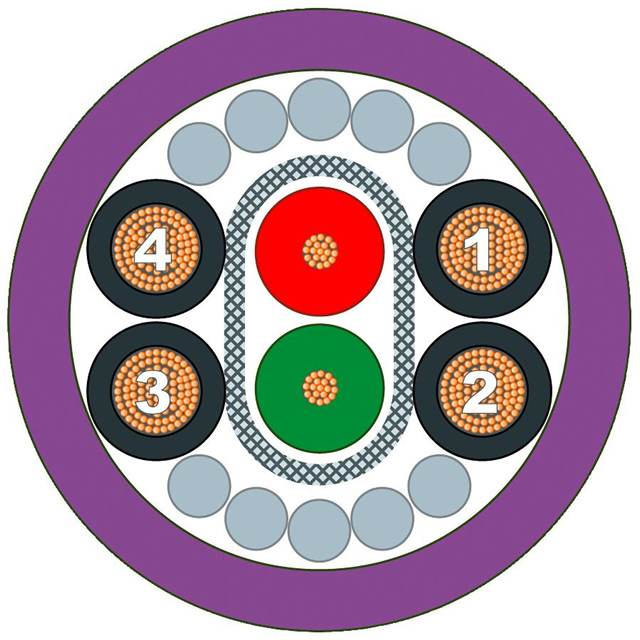

6 Conductor Multi-Conductor Cable Violet Foil, Braid 49.21' (15.00m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 6XV18603PN15 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | Polyethylene (PE) |
| Conductor Material | Copper |
| Jacket (Insulation) Diameter | 0.433 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Violet |
| Length | 49.21 ft |
| Number of Conductors | 6 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -30 °C |
| Shield Material | Aluminum, Tinned, Copper |
| Shield Type | Braid, Foil |
| Voltage | 600 V |
